ID
1345367
$ 458.87
1-2 weeks delivery time
-
+

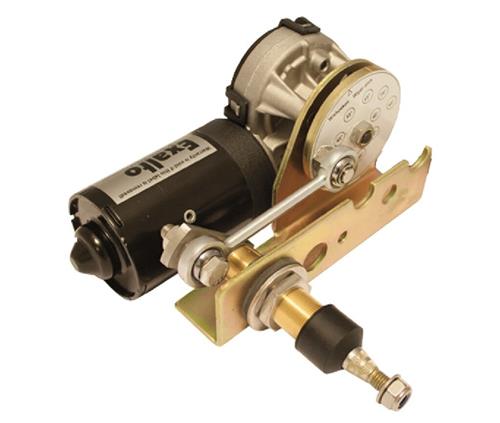

The Exalto EWT 223BDS 24V wiper motor with a 55° angle of view is suitable for single-drive bulkhead mounting with 75 mm wall thickness. It includes a pendulum wiping system, self-parking, and speed interval, providing 25 Nm torque and supporting wiper arms and blades up to 750 mm, ideal for marine and industrial use.
- Description
- Ask a Question
-
Exalto EWT Wiper 223BDS 24V 55° 25Nm Bulkhead 75mm Single
The Exalto EWT 223BDS 24V wiper motor with a 55° angle of view is designed for single-drive bulkhead installation with a wall thickness of 75 mm. This MD1 series wiper features a pendulum wiping system, self-parking, and speed interval. With a torque of 25 Nm and compatibility with arms and blades up to 750 mm, it delivers reliable wiping performance for marine and industrial applications.
Key Features
- Single-drive wiper motor
- Pendulum wiping system
- 55° angle of view
- Self-parking function
- Speed interval available
Technical Data
Article Code XA2166.40S-55 Sales Unit 1 piece EAN Code 8720763541320 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type Pendulum MD1 Driven Axles 1 Angle Of View 55° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 132 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 241 mm Product Height 90 mm Wall Thickness 75 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.40S-55)
-
