ID
1345366
$ 458.87
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 24V wiper motor with a 50° angle of view is built for single-drive bulkhead installation, offering pendulum operation, self-parking, and speed interval functionality. With a torque of 25 Nm, it ensures consistent wiping performance and is part of the MD1 series for professional applications.
- Description
- Ask a Question
-

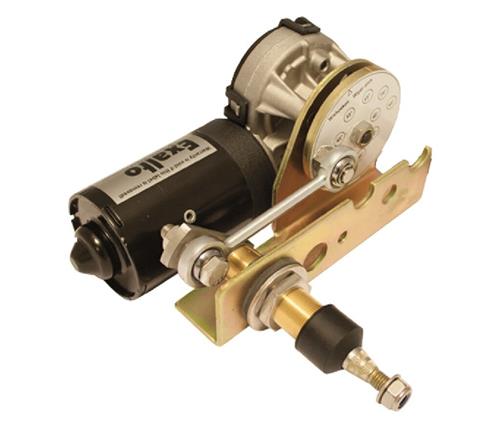

Exalto EWT Wiper 223BDS 24V 50° 25Nm Bulkhead 75mm Single
The Exalto EWT 223BDS 24V wiper motor with a 50° angle of view is built for single-drive bulkhead installations requiring extended shaft length and consistent wiping performance. This MD1 series wiper features pendulum operation, self-parking, and speed interval, delivering 25 Nm torque for professional applications.
Key Features
- 50° pendulum wiping angle
- Single-drive wiper motor
- Self-parking function
- Speed interval available
- Bulkhead mounting design
Technical Data
Article Code XA2166.40S-50 Sales Unit 1 piece EAN Code 8720763541313 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Pendulum Driven Axles 1 Angle Of View 50° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 132 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 241 mm Product Height 90 mm Wall Thickness 75 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.40S-50)
-
