ID
1345371
$ 458.87
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 24V wiper motor with a 75° angle of view provides extended wiping coverage in a compact single-drive bulkhead design. It features pendulum operation, self-parking, and speed interval, offering 25 Nm torque and supporting arms and blades up to 750 mm, compatible with the MD1 series.
- Description
- Ask a Question
-

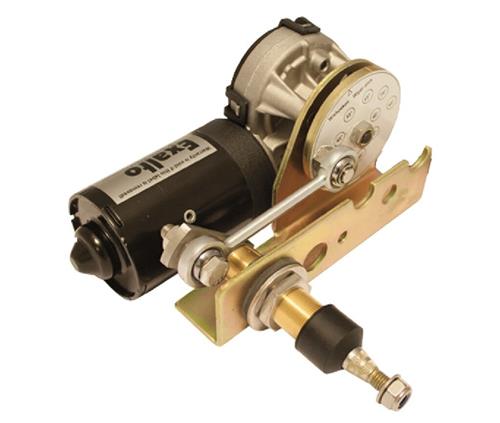

Exalto EWT Wiper 223BDS 24V 75° 25Nm Bulkhead 75mm Single
The Exalto EWT 223BDS 24V wiper motor with a 75° angle of view provides extended wiping coverage in a compact single-drive design. Built for bulkhead mounting with a wall thickness of 75 mm, this MD1 series wiper includes pendulum operation, self-parking, and speed interval. Its 25 Nm torque ensures dependable performance with long arms and blades.
Key Features
- 75° pendulum wiping angle
- Single-drive wiper motor
- Self-parking function
- Speed interval available
- MD1 series compatibility
Technical Data
Article Code XA2166.40S-75 Sales Unit 1 piece EAN Code 8720763541368 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Pendulum Driven Axles 1 Angle Of View 75° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 132 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 241 mm Product Height 90 mm Wall Thickness 75 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.40S-75)
-
