ID
1345374
$ 458.87
1-2 weeks delivery time
-
+

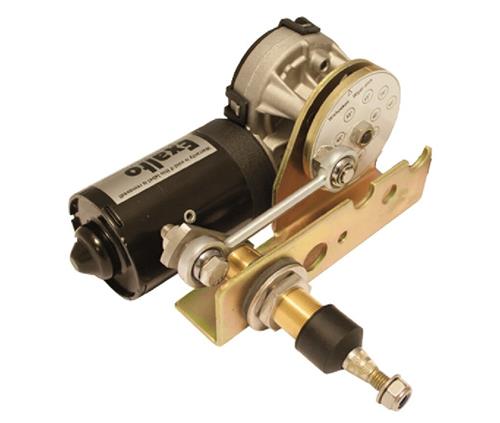

The Exalto EWT 223BDS wiper motor with a 90° angle of view provides maximum wiping coverage in a single-drive bulkhead-mounted design. It features pendulum wiping, self-parking, and dual-speed operation, delivering 25 Nm torque and supporting arms and blades up to 750 mm for demanding applications.
- Description
- Ask a Question
-
Exalto EWT Wiper 223BDS 24V 90° 25Nm Bulkhead 75mm Single
The Exalto EWT 223BDS wiper motor with a 90° angle of view offers maximum wiping coverage in a single-drive bulkhead-mounted design. Part of the MD1 series, this pendulum wiper features self-parking and dual speed operation. With a torque of 25 Nm and compatibility with wiper arms and blades up to 750 mm, it is suitable for demanding professional applications.
Key Features
- Single-drive wiper motor
- Pendulum wiping system
- Maximum 90° angle of view
- Self-parking function
- High and low speed operation
Technical Data
Article Code XA2166.40S-90 Sales Unit 1 piece EAN Code 8720763541399 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Pendulum Driven Axles 1 Angle Of View 90° Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Drive Shaft Diameter 19 mm Shaft Length 132 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 241 mm Product Height 90 mm Wall Thickness 75 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.40S-90)
-
