ID
1345402
$ 488.58
1-2 weeks delivery time
-
+

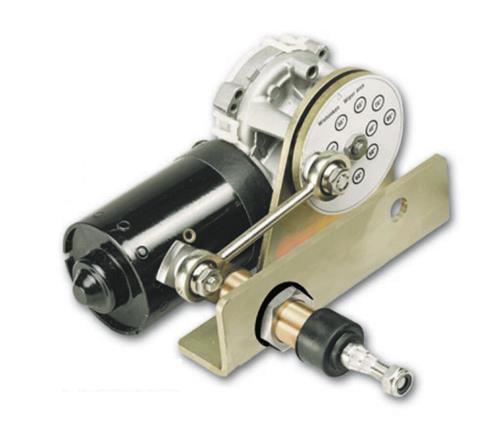

Exalto EWT 223BDS 24V wiper motor with 55° wiping angle for single-drive bulkhead mounting on 125 mm walls. MD1 pendulum design with self-parking, speed interval and 25 Nm torque, supporting arms and blades up to 750 mm.
- Description
- Ask a Question
-
Exalto EWT Wiper 223BDS 24V 55° 25Nm Bulkhead 125mm Single
The Exalto EWT 223BDS 24V wiper motor with a 55° angle of view is designed for single-drive bulkhead installation with a wall thickness of 125 mm. This MD1 series pendulum wiper features self-parking and speed interval functionality. With a torque of 25 Nm and support for wiper arms and blades up to 750 mm, it ensures reliable performance in marine and industrial environments.
Key Features
- Single-drive wiper motor
- Pendulum wiping system
- 55° angle of view
- Self-parking function
- Speed interval available
Technical Data
Article Code XA2166.50S-55 Sales Unit 1 piece EAN Code 8720763541764 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type Pendulum MD1 Driven Axles 1 Angle Of View 55° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 182 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 291 mm Product Height 90 mm Wall Thickness 125 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.50S-55)
-
