ID
1345401
$ 488.58
1-2 weeks delivery time
-
+

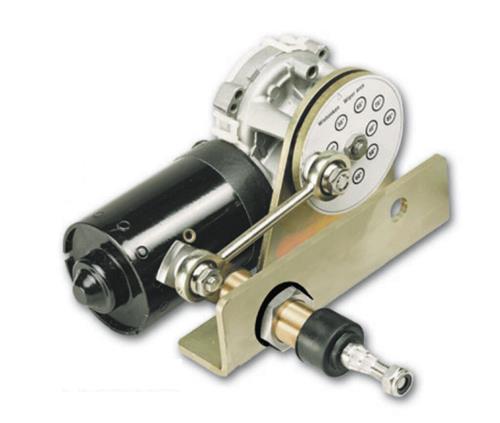

Exalto EWT 223BDS 24V wiper motor with 50° wiping angle for single-drive bulkhead installation, designed for 125 mm wall thickness. MD1 pendulum system with self-parking, speed interval and 25 Nm torque, suitable for wiper arms and blades up to 750 mm.
- Description
- Ask a Question
-
Exalto EWT Wiper 223BDS 24V 50° 25Nm Bulkhead 125mm Single
The Exalto EWT 223BDS 24V wiper motor with a 50° angle of view is designed for professional single-drive bulkhead installations with a wall thickness of 125 mm. This MD1 series pendulum wiper combines self-parking and speed interval with a powerful 25 Nm torque, supporting long wiper arms and blades up to 750 mm.
Key Features
- 50° pendulum wiping angle
- Single-drive wiper motor
- Self-parking function
- Speed interval available
- Bulkhead mounting design
Technical Data
Article Code XA2166.50S-50 Sales Unit 1 piece EAN Code 8720763541757 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Pendulum Driven Axles 1 Angle Of View 50° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 182 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 291 mm Product Height 90 mm Wall Thickness 125 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.50S-50)
-
