ID
1345406
$ 488.58
1-2 weeks delivery time
-
+
Exalto EWT 223BDS 24V wiper motor with 75° wiping angle, built for single-drive bulkhead installation on 125 mm walls. MD1 pendulum wiper combining self-parking, speed interval and reliable 25 Nm torque output.
- Description
- Ask a Question
-

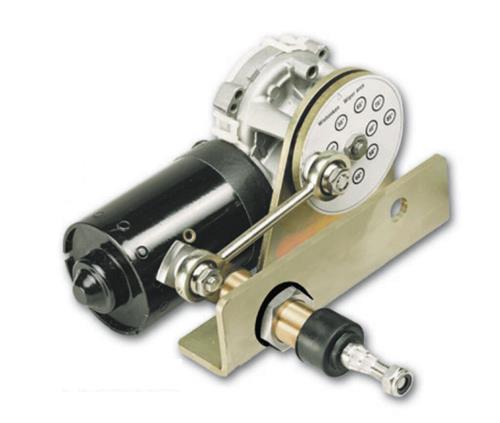

Exalto EWT Wiper 223BDS 24V 75° 25Nm Bulkhead 125mm Single
The Exalto EWT 223BDS 24V wiper motor with a 75° angle of view delivers extended wiping coverage in a single-drive bulkhead design. Built for a wall thickness of 125 mm, this MD1 series pendulum wiper combines self-parking and speed interval with a reliable 25 Nm torque output.
Key Features
- 75° pendulum wiping angle
- Single-drive configuration
- Self-parking resting position
- Speed interval function
- MD1 series compatibility
Technical Data
Article Code XA2166.50S-75 Sales Unit 1 piece EAN Code 8720763541801 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Pendulum Driven Axles 1 Angle Of View 75° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 182 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 291 mm Product Height 90 mm Wall Thickness 125 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.50S-75)
-
