ID
1345407
$ 488.58
1-2 weeks delivery time
-
+
Exalto EWT 223BDS 24V wiper motor with 80° angle of view, offering wide wiping coverage in a compact single-drive bulkhead design. MD1 pendulum system with self-parking, speed interval and 25 Nm torque for demanding use.
- Description
- Ask a Question
-

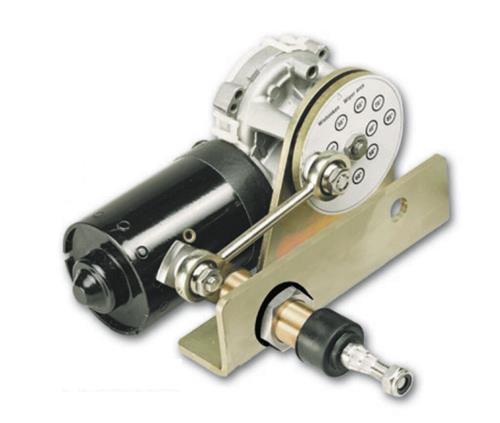

Exalto EWT Wiper 223BDS 24V 80° 25Nm Bulkhead 125mm Single
The Exalto EWT 223BDS 24V wiper motor with an 80° angle of view offers wide wiping coverage in a compact single-drive bulkhead-mounted design. This MD1 series pendulum wiper features self-parking and speed interval functionality and delivers a constant 25 Nm torque for demanding applications.
Key Features
- 80° pendulum wiping angle
- Single-drive wiper motor
- Self-parking function
- Speed interval available
- Bulkhead mounting design
Technical Data
Article Code XA2166.50S-80 Sales Unit 1 piece EAN Code 8720763541818 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Pendulum Driven Axles 1 Angle Of View 80° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 182 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 291 mm Product Height 90 mm Wall Thickness 125 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.50S-80)
-
