ID
1345409
$ 488.58
1-2 weeks delivery time
-
+
Exalto EWT 223BDS 24V wiper motor with maximum 90° angle of view for full wiping coverage in single-drive bulkhead installations. MD1 pendulum system with self-parking, speed interval, high and low speed operation and 25 Nm torque.
- Description
- Ask a Question
-

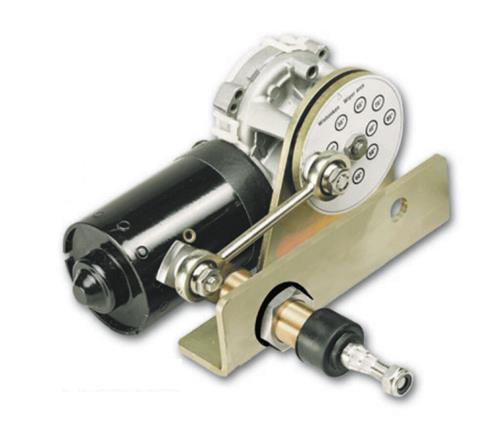

Exalto EWT Wiper 223BDS 24V 90° 25Nm Bulkhead 125mm Single
The Exalto EWT 223BDS 24V wiper motor with a 90° angle of view offers maximum wiping coverage in a single-drive bulkhead-mounted design. Part of the MD1 series, this pendulum wiper features self-parking, speed interval, and high/low speed operation. With a torque output of 25 Nm, it is suitable for professional marine and industrial use.
Key Features
- Maximum 90° pendulum wiping angle
- Self-parking function
- Speed interval available
- High and low speed operation
- Bulkhead mounting design
Technical Data
Article Code XA2166.50S-90 Sales Unit 1 piece EAN Code 8720763541832 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Pendulum Driven Axles 1 Angle Of View 90° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 182 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 291 mm Product Height 90 mm Wall Thickness 125 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.50S-90)
-
