ID
1345245
$ 433.09
1-2 weeks delivery time
-
+
Exalto EWT Wiper 223BDS 12V bulkhead-mounted wiper for MD1 series with 75° sweep and 23 Nm torque. Features MD1 pendulum arm, 19 mm shaft diameter, 92 mm shaft length, speed interval, self-parking, ungrounded design, 36 W power, and supports arm up to 750 mm and blade up to 800 mm.
- Description
- Ask a Question
-

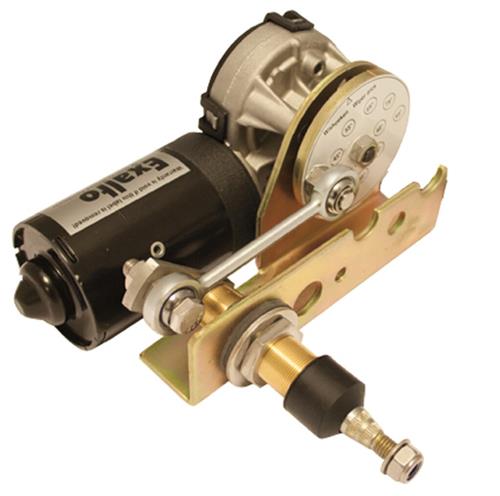

Exalto EWT Wiper 223BDS 12V 75° 23Nm Bulkhead 35mm Single
The Exalto EWT Wiper 223BDS is a 12V bulkhead-mounted wiper designed for the MD1 series. It features a 75° angle of view and delivers a powerful 23 Nm torque. The wiper uses a pendulum MD1 arm type with a drive shaft diameter of 19 mm and a shaft length of 92 mm. It supports speed interval control and self-parking functionality, ideal for reliable and efficient operation.
Key Features
- Voltage: 12 VDC
- Angle of View: 75°
- Torque: 23 Nm
- Drive Shaft Diameter: 19 mm
- Arm Type: MD1 Pendulum
- Shaft Length: 92 mm
- Speed Interval: Yes
- Self-Parking: Yes
- Ungrounded: Yes
- Recommended Fuse Rating: 6 A
- Maximum Ampèrage: 3 A
- Maximum Arm Length: 750 mm
- Maximum Blade Length: 800 mm
- Wall Thickness: 35 mm
- Power: 36 W
- High Speed: 56 rpm
- Low Speed: 38 rpm
Technical Specifications
Article XA2165.32S-75 Sales Unit 1 piece Product Width (mm) 170 Product Depth (mm) 201 Product Height (mm) 90 Series MD1 Type VDC Driven Axles 1 Ean Code 8720763539310
Brand: Exalto Wiper Technologies B.V. (Article code XA2165.32S-75)
-
