ID
1345389
$ 469.18
1-2 weeks delivery time
-
+

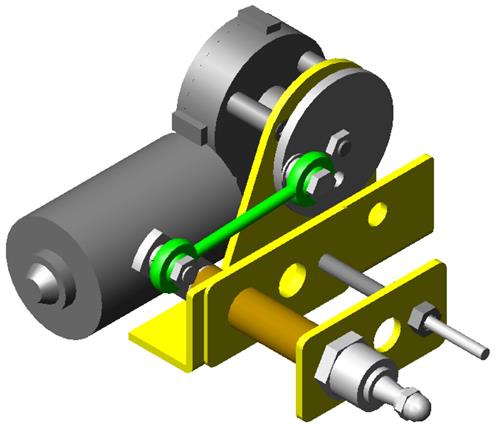

Exalto EWT 223BD 24V wiper motor with a 45° wiping angle, designed for 125 mm bulkhead mounting. MD1 pendulum system with self-parking, interval function, and constant 25 Nm torque.
- Description
- Ask a Question
-
Exalto EWT Wiper 223BD 24V 45° 25Nm Bulkhead 125mm
The Exalto EWT 223BD 24V wiper motor with a 45° angle of view is designed for professional bulkhead installation with a wall thickness of 125 mm. This MD1 series pendulum wiper features self-parking and speed interval and delivers reliable 25 Nm torque for demanding applications.
Key Features
- 45° pendulum wiping angle
- Self-parking resting position
- Speed interval function
- MD1 series compatibility
- Bulkhead mounting design
Technical Data

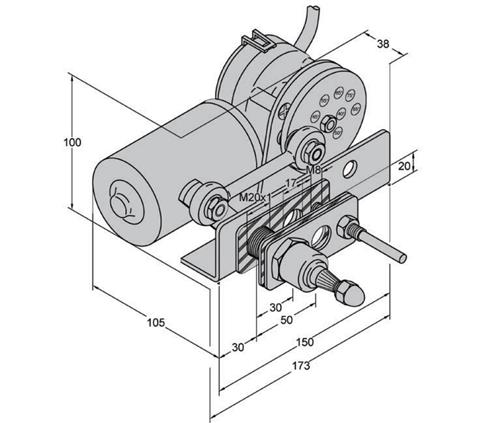

Article Code XA2166.50-45 Sales Unit 1 piece EAN Code 8720763541634 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Pendulum Driven Axles 1 Angle Of View 45° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 182 mm Centre Distance HoH 50 mm Support Diameter 6.4 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 288 mm Product Height 90 mm Wall Thickness 125 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.50-45)
-
