ID
1345388
$ 469.18
1-2 weeks delivery time
-
+
Exalto EWT 223BD 24V wiper motor with a fixed 40° angle of view for bulkhead installation up to 125 mm. MD1 series pendulum wiper with self-parking, interval function, and 25 Nm torque for long arms and blades.
- Description
- Ask a Question
-
Exalto EWT Wiper 223BD 24V 40° 25Nm Bulkhead 125mm

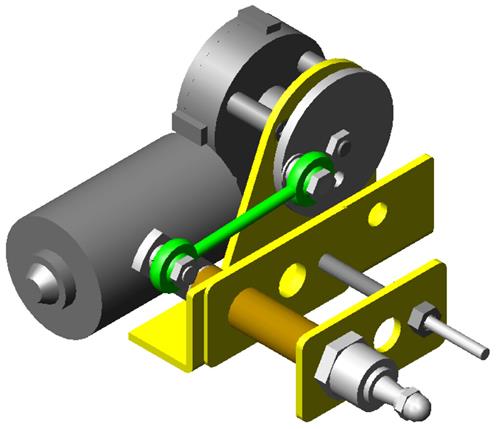

The Exalto EWT 223BD 24V wiper motor with a 40° angle of view is engineered for bulkhead mounting with a wall thickness of 125 mm. This MD1 series pendulum wiper includes self-parking and speed interval functionality and delivers a constant torque of 25 Nm for reliable operation with long wiper arms and blades.
Key Features
- Pendulum wiping system
- 40° angle of view
- Self-parking function
- Speed interval available
- Bulkhead mounting design
Technical Data

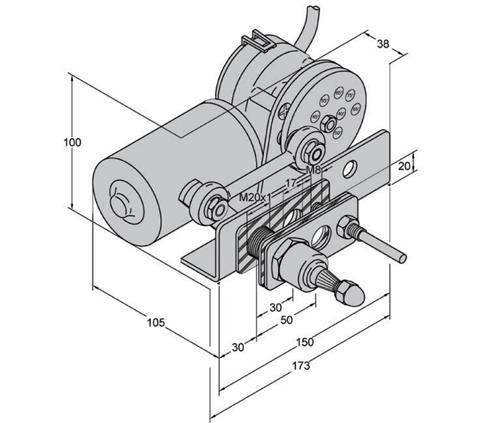

Article Code XA2166.50-40 Sales Unit 1 piece EAN Code 8720763541627 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Pendulum Driven Axles 1 Angle Of View 40° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 182 mm Centre Distance HoH 50 mm Support Diameter 6.4 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 288 mm Product Height 90 mm Wall Thickness 125 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.50-40)
-
