The Vetus M456A322A propulsion package integrates a Mitsubishi M4.56 turbocharged 4-cylinder marine engine (1758 cm³) with a Technodrive TMC345 gearbox featuring a straight outlet and i=2:1 (reduction 2.0). Rated output is 38.3 kW / 52 HP at 3,000 rpm, and the system is specified with a 2-circuit cooling arrangement plus a 12V electrical system operated via the MP22 control panel.
- Description
- Ask a Question
-

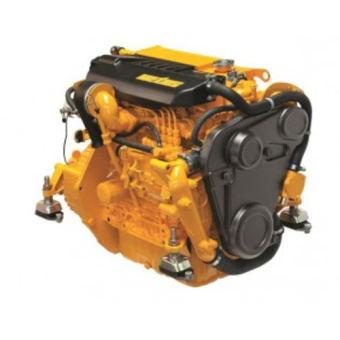

Vetus M456A322A Mitsubishi M4.56 Engine and TMC345 2:1 Gearbox Package
The Vetus M456A322A is a marine propulsion system combining a Mitsubishi M4.56 diesel engine with a Technodrive TMC345 marine gearbox. It is configured as an integrated engine-and-gearbox package intended for marine propulsion duties where a 2:1 reduction and straight-outlet gearbox arrangement are required.
Compatibility
- Mitsubishi M4.56 engine
- Technodrive TMC345 gearbox (straight outlet)
Technical Specifications
Engine Type Turbocharged 4-cylinder Displacement 1758 cm³ Rated Power Output 38.3 kW / 52 HP at 3,000 rpm Cooling System 2-Circuit Electrical System 12V Control Panel MP22 Gearbox Technodrive TMC345 (Straight Outlet) Reduction Ratio 2.0 (i = 2:1)
Product Details
- System configuration: Mitsubishi M4.56 engine paired with TMC345 gearbox
- Intended use: Marine propulsion applications
Features
- 38.3 kW / 52 HP at 3,000 rpm rating
- Turbocharged 4-cylinder, 1758 cm³ engine configuration
- 2-circuit cooling system
- 12V electrical system with MP22 control panel
- TMC345 straight-outlet gearbox with 2:1 reduction
-
