ID
1244473
$ 889.69
1-2 weeks delivery time
-
+

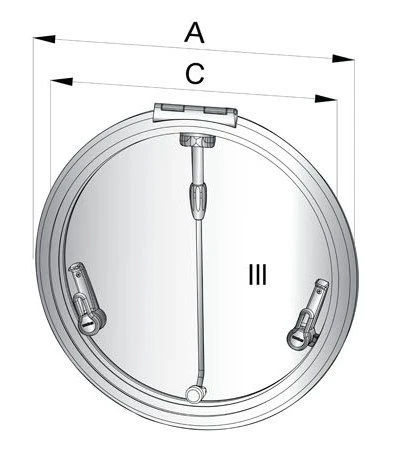

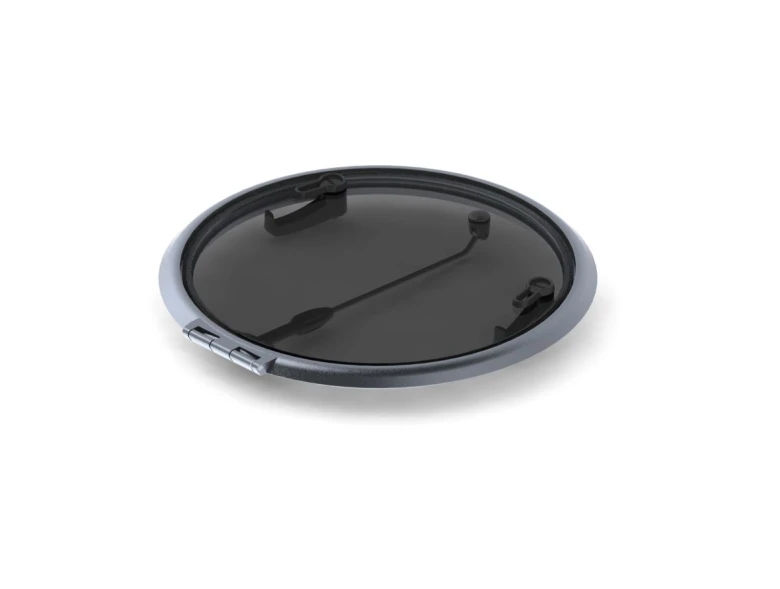

The Vetus ALTR520SL Altus Escape Hatch (article ALTR520SL) is a round ocean-grade deck hatch with CE classification AII, offering reliable escape and ventilation functionality. Its external diameter is 592 mm with a cut-out diameter of 518 mm. The 23 mm-high satin sheen anodized aluminum frame recesses 22 mm below deck, while the 10 mm dark smoke acrylic pane ensures durability and UV resistance. The hatch can be operated from inside or outside, securely locked watertight or in a ventilation position, and held open at almost any angle up to 90°.
- Description
- Ask a Question
-
Vetus ALTR520SL Altus Round Escape Hatch for Ocean Deck Installation
The Vetus ALTR520SL Altus round escape and ventilation hatch is engineered for demanding marine conditions and certified for design category A, appliance location area II. Its smooth satin sheen anodized aluminum frame and dark smoke acrylic provide long-term durability and a premium appearance suitable for modern yachts and vessels. Designed for safety and convenience, the hatch offers internal and external operation, with adjustable positioning of the lid up to 90°.
Technical Specifications Product Type Escape and Ventilation Hatch Model Vetus ALTR520SL Hatch Series Altus Shape Round CE Classification AII (Ocean Use) Frame Material Aluminium, satin sheen anodized Acrylic Pane 10 mm, dark smoke External Diameter (mm) 592 Cut-Out Diameter (mm) 518 Frame Height 23 mm Recess Below Deck 22 mm Number of Handles 2 Number of Hinges 1 Number of Adjusters 1 Mosquito Screen Optional (type HCMR520) Opening Direction From inside and outside Ventilation Lock Yes Opening Angle Up to 90°
Key Features
- Certified CE AII for installations exposed to ocean conditions
- Round profile ideal for versatile deck layouts
- High-strength anodized aluminum frame for corrosion resistance
- 10 mm acrylic panel ensures safety and UV protection
- Adjustable opening up to 90° for flexible ventilation
- Operable and securable from both inside and outside
- Watertight sealing with additional ventilation-locked position
- Low-profile design complements modern vessel aesthetics
-
