ID
1331558
$ 312.49
1-2 weeks delivery time
-
+
The Jabsco Q401J-118N-3A HotShot HD4 washdown pump delivers high-pressure cleaning performance with 12V DC power, providing 15 L/min (4 US GPM) at up to 60 PSI (4.1 bar). It self-primes up to 2.4 m (8 ft), can run dry without damage, and uses a sealed pressure switch with 50 PSI cut-in for on-demand operation. Built around a 4-chamber diaphragm design with vibration-dampening feet, it supports fresh or saltwater use and includes multiple hose fittings plus strainers and washdown accessories for straightforward installation.
- Description
- Ask a Question
-

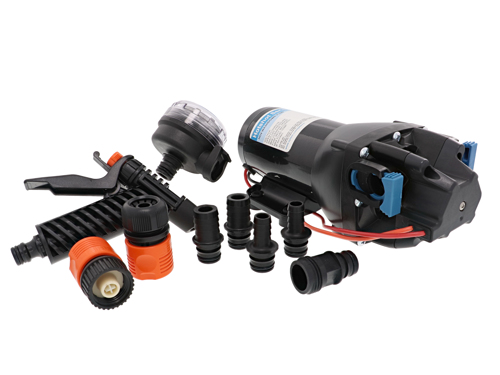

Jabsco Q401J-118N-3A HotShot HD4 12V Washdown Pump Unit
The Jabsco HotShot HD4 Q401J-118N-3A is a heavy-duty 12V deck wash and washdown pump built for high-pressure cleaning and rinsing. Designed for demanding marine, RV, and mobile washdown systems, it combines strong flow with on-demand pressure control and includes a practical set of fittings and accessories to simplify setup.
Application
- High-pressure deck wash and washdown cleaning applications
- Marine systems
- RV systems
- Mobile washdown systems
- Suitable for fresh and saltwater use (seawater compatible)
Compatibility
- Replaces: JAB-32605-0392
- Replaces: 32605-0092
- Replaces: 32605-0392
- Replaces: 31700-0092
- Replaces: 31700-0392
- Replaces: 82405-0092
Technical Specifications
Brand Jabsco Model Number Q401J-118N-3A Order Number 00320661 Barcode 671880841917 Product Portfolio Washdown Pumps Voltage 12V DC Flow Rate 15 L/min (4 US GPM) Output (As Listed) 15.1 L/min (4 GPM) Shut-Off Pressure 60 PSI (4.1 bar) Cut-In Pressure 50 PSI Self-Priming Up to 2.4 m (8 ft) dry prime Maximum Vertical Lift (As Listed) 2.4 m (7.9 ft) Dry-Run Capability Dry run capable without damage Inlet Pressure (Max) 30 PSI (2.1 bar) Amperage 11 A at 60 PSI Recommended Fuse Size 20 A (not included) Pump Type 4 chamber diaphragm Pressure Control Sealed pressure switch for on-demand use Temperature Range 0°C to 60°C (32°F to 140°F) Ingress Protection Rating IPX6 rated Lead Size 305 mm (12 in), 14 AWG (2.5 mm²) Dimensions 239 mm (L) x 104 mm (W) x 97 mm (H) Dimensions (As Listed) 239 mm (L) x 109 mm (W) x 97 mm (H) Dimensions (As Listed, Without Ports) Height 9.7 cm / Width 10.4 cm / Length 23.9 cm Weight 3.2 kg Weight (As Listed) 2.50 kg (approx. 3.00 kg packed) Shipping Weight 5.00 kg Certification ISO 8846 Ignition Protected, CE Certified, RCM compliant
Product Details
- Motor protection: Automatic thermal overload cut-out
- Housing: Cast aluminum lower housing (as listed)
- Internal components: EPDM valves and Santoprene diaphragm (as listed)
- Construction: Heavy-duty motor components and corrosion-resistant components (as listed)
- Ports and connections: Snap-in ports
- Hose fittings: 13 mm (1/2 in), 19 mm (3/4 in), and US Garden Hose Thread
Features
- High-flow, self-priming diaphragm pump for washdown use
- Runs dry without damage
- Vibration-dampening feet for quieter operation
- Sealed pressure switch for on-demand use
- Pressure switch cut-out at 4.1 bar (60 PSI)
- Water-resistant IPX6 rating
Included Accessories
- Inline strainer (40 mesh)
- 90° strainer (20 mesh)
- Straight hose barb fittings
- Trigger nozzle (pressure nozzle)
- Quick connect adapters
- Garden hose adapter
-
