ID
1331563
$ 384.48
1-2 weeks delivery time
-
+
The Jabsco Q402J-118N-3A HotShot HD4 washdown pump is a heavy-duty 24V self-priming deck wash unit that delivers 15 L/min (15.1 L/min / 4 GPM) at 60 PSI (4.1 bar) for steady, high-pressure cleaning of decks and anchors. It supports fresh and saltwater use, includes thermal overload protection with auto restart, and uses a membrane design that can run dry without damage. Supplied with a spray gun, hose connections, and an inlet filter/inline strainer, it also features a 2.4 m suction height, 4-chamber design, and a compact 240 x 104 x 97 mm footprint.
- Description
- Ask a Question
-
Jabsco Q402J-118N-3A HotShot HD4 Marine Washdown Pump System
The Jabsco Q402J-118N-3A HotShot HD4 is a heavy-duty deck wash pump built to provide steady flow and high pressure for onboard cleaning. Designed for demanding marine washdown tasks, it supports both fresh and saltwater use and comes as a complete setup for rinsing decks, anchors, and equipment.
Application
- Deck washing and general marine washdown
- Rinsing anchors and decks with steady water flow and high pressure
- Suitable for fresh water and salt water
Technical Specifications
Order Number 00320662 Supplier Code Q402J-118N-3A Barcode 671880841931 Voltage 24 Volts Flow Rate 15 LPM (15.1 Litre / Minute, 4 GPM) Pressure 4.1 Bar / 60 PSI Cut-Off Pressure 4.1 Bar (60 PSI) Suction Height 2.4 m Pump Type 4 Chamber Aperture Amperage 6 A Fuse Size 10 A (Not Included) Dimensions (L x W x H) 240 x 104 x 97 mm Dimensions (Height / Width / Length) 9.7 cm / 10.4 cm (Without Ports) / 23.9 cm Weight 2.5 kg Shipping Weight 5.00 kg
Product Details
- Protection: Thermal overload protection with auto restart
- Self-Priming: Up to 2.4 m
- Dry-Run Capability: Membrane design allows dry running; runs dry without damage
- Diaphragm and Valves: EPDM valves and Santoprene diaphragm
- Product Portfolio: Washdown pumps
- Alternatives: Jabsco 32605-0094, 32605-0394, 31700-0094, 31700-0394, 82405-0094
Features
- Heavy-duty washdown performance with steady flow and high pressure
- Suitable for both fresh and saltwater use
- Self-priming design for easier installation and reliable suction
- Thermal overload protection with automatic restart
- Membrane design supports dry running without damage

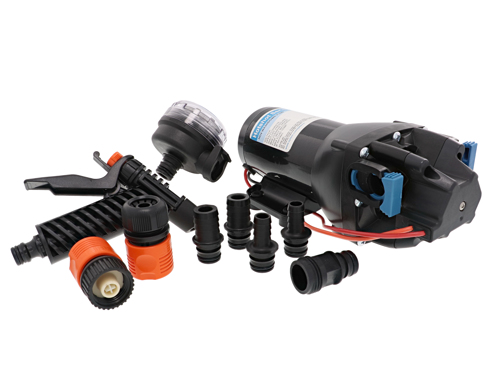

Included Components
- Spray gun
- Hose connections
- Inlet filter
- Inline strainer (40 mesh)
- Pressure nozzle
- 19 mm (3/4 in) hose barbs
- 12 mm (1/2 in) hose barbs
- Garden hose adapter
-
