The Jabsco Q401J-118N-4A HotShot HD4 washdown pump kit delivers a complete 12V DC deck wash system, providing 15.1 L/min (4 US GPM) flow with 60 PSI (4.1 bar) shut-off pressure for effective onboard cleaning. The 4-chamber diaphragm pump is self-priming up to 2.4 m, can run dry without damage, and is supplied with key installation and washdown accessories including an inline strainer, pressure nozzle, hose barbs, a garden hose adapter, and a 6.2 m hosecoil.
- Description
- Ask a Question
-
Jabsco Q401J-118N-4A HotShot HD4 12V Deck Wash System
Jabsco HotShot HD4 (model Q401J-118N-4A) is a heavy-duty washdown pump kit built to provide a ready-to-install deck wash solution. It combines a high-pressure 12V diaphragm pump with practical accessories—such as a hosecoil, adapters, strainer, and nozzle—so you can set up a reliable washdown station for routine onboard cleaning.
Application
- Deck wash and washdown pump applications
- Marine use
Technical Specifications
Brand Jabsco Model Number Q401J-118N-4A Order Number 00320663 Barcode 671880841924 Voltage 12V DC Current Draw 11A Recommended Fuse Size 20A (not included) Flow Rate 15.1 L/min (4 US GPM) Shut-Off Pressure 60 PSI (4.1 bar) Self-Priming Up to 2.4 m suction height Pump Type 4-chamber diaphragm Dimensions 240 mm (L) x 104 mm (W) x 97 mm (H) Dimensions (Alternate Listing) Height 9.7 cm / Width 10.4 cm (without ports) / Length 23.9 cm Weight 2.5 kg Shipping Weight 6.00 kg Product Portfolio Washdown Pumps
Product Details
- Dry-run capable: runs dry without damage
- Pressure control: pressure switch cuts out at 4.1 bar (60 PSI)
- Valve and diaphragm materials: EPDM valves and Santoprene diaphragm

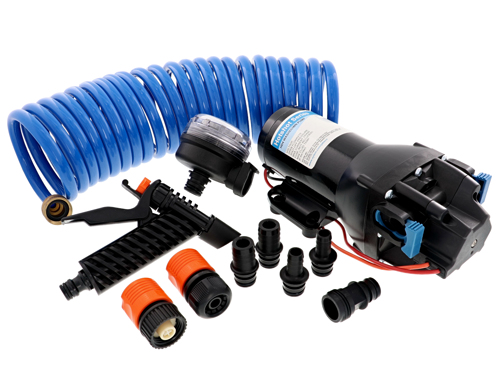

Included in the Kit
- Inline strainer (40 mesh)
- Pressure nozzle
- 19 mm (3/4") hose barbs
- 12 mm (1/2") hose barbs
- Garden hose adapter
- 6.2 m hosecoil
Features
- Delivers high-pressure washdown performance at 15.1 L/min (4 US GPM)
- 12V DC operation for straightforward integration on board
- Self-priming up to 2.4 m to support flexible installation
Alternatives
- Alternative to Jabsco 32900-0092
- Alternative to Jabsco 32901-0092
- Alternative to Jabsco 82904-0092
-
