ID
1331561
$ 384.48
1-2 weeks delivery time
-
+
The Jabsco Q402J-112S-3A Par-Max HD4 pressure-controlled water pump delivers heavy-duty 24V DC freshwater supply with up to 15 L/min (4 US GPM) flow and a 25 PSI (1.7 BAR) shut-off pressure for consistent multi-outlet performance. Dry self-priming up to 2.13 m (7 ft), a sealed pressure switch for on-demand operation, thermal protection, and vibration-dampening feet support quiet, reliable service, while quick connect fittings and an inline 40 mesh strainer help simplify installation and protect the system.
- Description
- Ask a Question
-

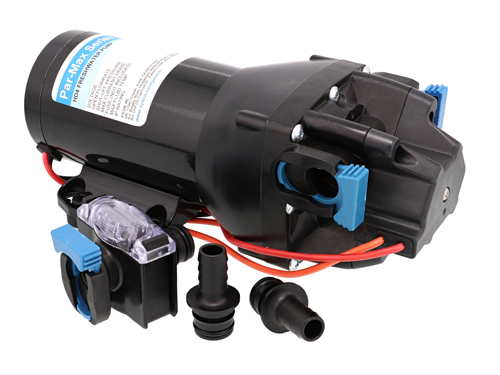

Jabsco Q402J-112S-3A Par-Max HD4 Freshwater Pressure Pump Unit
The Jabsco Q402J-112S-3A Par-Max HD4 is a heavy-duty drinking water pump built for dependable, pressure-controlled freshwater delivery. Designed for multi-outlet use, it combines quiet operation with protective features to support reliable performance in demanding installations.
Application
- Multi-outlet freshwater delivery
- Potable water systems with 32 outlets
- Marine applications
- RV applications
- Remote applications
Technical Specifications
Brand Jabsco Model Q402J-112S-3A Order Number 00320630 Supplier Code Q402J-112S-3A Replaces 509738 Voltage 24V DC Flow Rate 15 L/min (4 US GPM) Shut-Off Pressure 25 PSI (1.7 BAR) Cut-In Pressure 10 PSI Pressure Rating 25 PSI operating / 30 PSI inlet Dry Self-Priming Up to 2.13 m (7 ft) Maximum Current 4.0 A Recommended Fuse 10 A (not included) Temperature Range 0 C to 60 C (32 F to 140 F) Dimensions (L x W x H) 239 x 104 x 97 mm Weight 2.92 kg Shipping Weight 4.30 kg Inlet/Outlet Fittings for 13 mm (1/2 in) ID hose Wire Leads 12 in (305 mm), 14 AWG (2.5 mm ) Certifications ISO 8846 Ignition Protected, CE Certified, RCM compliant Barcode 671880841887 Product Portfolio Water Pressure Systems Guarantee 3 years
Product Details
- Diaphragm and valves: 4-chamber Santoprene diaphragm and EPDM valves
- Pressure control: Integrated sealed pressure switch for on-demand operation
- Protection: Thermal protection
- Included fittings: 2 x 1/2 in quick connect straight hosebarb fittings
- Included strainer: Inline 40 mesh strainer
Features
- Dry self-priming capability up to 2.13 m (7 ft)
- Runs dry without damage
- Vibration-dampening feet for quiet performance
- Bypass design enables smoother flow and decreases cycling
-
