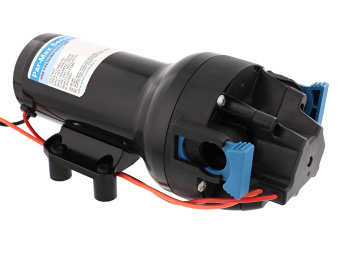

Jabsco P602J-219N-3A - HotShot Wash Down Heavy Duty Pressure Controlled Diaphragm Pump

Jabsco P602J-219N-3A - HotShot Wash Down Heavy Duty Pressure Controlled Diaphragm Pump

The Jabsco P602J-219N-3A HotShot Wash Down Heavy Duty Pressure Controlled Diaphragm Pump is a high-performance 24V DC pump engineered for demanding washdown applications in marine, industrial, and agricultural settings. Offering a maximum pressure of 70 psi (4.8 bar) and a flow rate of 22.7 liters per minute (6 gallons per minute), this pump ensures reliable and powerful water delivery. Featuring a 5-chamber diaphragm design, it allows for dry running, making it suitable for continuous operation even in water-starved conditions. With self-priming capabilities up to 2.1 meters (7 feet) and an IPx6 waterproof rating, this pump is built to handle a variety of tough environments, including seawater applications. The heavy-duty motor and cast aluminum housing ensure exceptional durability and longevity, even at high pressures. This pump is supplied with an inlet strainer, deluxe trigger nozzle, adapters, and port fittings for easy integration into your system.

Key Features

• 5-chamber diaphragm design for high-flow, high-pressure performance.
• 24V DC operation for versatile use in marine, industrial, and agricultural environments.
• Maximum pressure of 70 psi (4.8 bar) for powerful washdown and water transfer applications.
• Output of 22.7 liters per minute (6 gallons per minute) for efficient water delivery.
• Self-priming up to 2.1 meters (7 feet) vertical lift, ideal for a variety of installation setups.
• Dry running diaphragm design ensures protection even when water is not available.
• Water-resistant (IPx6) construction, perfect for use with seawater and in wet environments.
• Heavy-duty motor and cast aluminum lower housing for durability and extended service life.

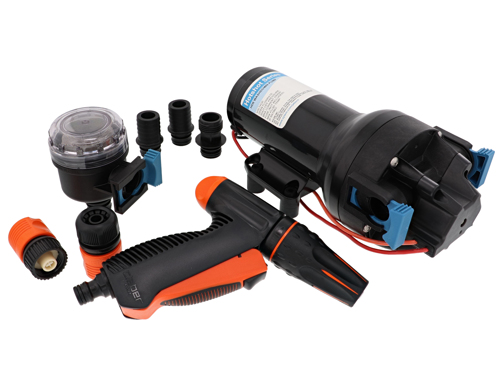

• Comes complete with inlet strainer, deluxe trigger nozzle, adapters, and port fittings for ease of use.

Specifications

• Product Type: HotShot Wash Down Diaphragm Pump
• Voltage: 24V DC
• Maximum Pressure: 70 psi (4.8 bar)
• Output: 22.7 liters/minute (6 gallons/minute)
• Connections: For 19 mm (3/4”) bore hose and 3/4" US GHT (x1)
• Fuse Size: 15 amp
• Dimensions: 260mm long x 129mm wide x 119mm high
• Weight: 4.0 kg (Approx. 3.70 kg packed)
• Water Resistance: IPx6 (waterproof)
• Self-Priming Lift: Up to 2.1 meters (7 feet)
• Motor: Heavy-duty, coated motor for long-lasting performance
• Lower Housing: Cast aluminum for durability and corrosion resistance
• Operating Temperature Range: -10°C to 60°C (14°F to 140°F)
• Recommended Applications: Marine washdown, industrial cleaning, agricultural use
• Package Dimensions: L: 45.00 cm x H: 14.00 cm x W: 21.00 cm
• Maximum Duty Cycle: Continuous operation
• Inlet Strainer: Included for enhanced filtration and protection

Applications

• Marine washdown applications such as deck cleaning, boat hull cleaning, and equipment washdown.
• Agricultural use for cleaning equipment, irrigation systems, and watering setups.
• Industrial washdown and cleaning tasks requiring high-flow and high-pressure performance.
• Seawater applications, thanks to its IPx6 waterproof rating and durable construction.

Benefits

• Ensures high-flow, high-pressure performance for efficient washdown and cleaning tasks.
• Self-priming and dry-running diaphragm allows operation in water-scarce environments without damage.
• Durable construction with heavy-duty motor and cast aluminum housing for longer lifespan.
• IPx6 waterproof rating makes it perfect for use in wet, challenging environments like seawater.
• Easy installation and operation with supplied inlet strainer, nozzle, and fittings.
• Designed for continuous operation with a high duty cycle, providing reliable performance.
• Perfect for use in harsh environments with its heavy-duty motor and corrosion-resistant parts.

The Jabsco P602J-219N-3A HotShot Wash Down Heavy Duty Pressure Controlled Diaphragm Pump is designed for demanding applications that require reliable, high-flow, and high-pressure water delivery. Whether used in marine, agricultural, or industrial environments, this pump provides powerful performance and durability. With features like dry running capability, self-priming lift, and water resistance, it is ideal for tough conditions. Supplied with all necessary accessories, this pump is a versatile and dependable solution for washdown tasks.
