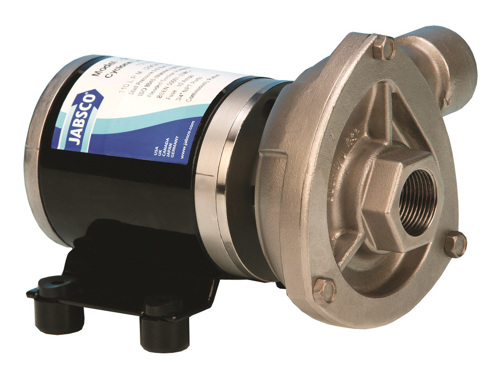

Jabsco 50840-2024 - Centrifugal Cyclone Pump Non-Self-Priming

Jabsco 50840-2024 - Centrifugal Cyclone Pump Non-Self-Priming

The Jabsco 50840-2024 Centrifugal Cyclone Pump is a high-output, non-self-priming centrifugal pump designed for continuous operation in demanding fluid transfer applications. Powered by a 24V DC motor, this robust pump features a durable stainless steel body and is ideal for tasks like ballast transfer, hot water circulation, and engine cooling. It delivers a flow rate of 100 liters per minute (22 gallons per minute) at 0.1m head, making it perfect for systems that require high flow rates at low pressures. With ¾” BSP internal threaded ports, the pump requires flooded suction to operate effectively and can be used with a shut-off nozzle for precise control. Its maximum recommended total head is 4 meters, and it operates efficiently with a fuse size of 5A and a maximum current of 3.5A. This pump is designed to handle fluids with temperatures ranging from +4°C to +95°C, making it suitable for a variety of applications, including diesel transfer, gas oil, kerosene, and paraffin. Its compact size, high performance, and long lifespan make it an ideal choice for applications that demand reliability and continuous service.

Key Features

• Non-self-priming centrifugal pump requiring flooded suction for operation.
• Robust stainless steel body designed for durability in demanding environments.
• High output, capable of delivering 100 liters/min (22 GPM) at 0.1m head.
• Continuously rated pump ideal for ballast transfer, engine cooling, and central heating systems.
• Compatible with ¾” BSP internal threaded ports for easy connection.
• Fluid temperature range from +4°C to +95°C, suitable for a wide range of applications.
• Fuse size of 5A and maximum current of 3.5A for efficient power management.
• Compact design for easy installation in constrained spaces, with minimal maintenance required.
• Reliable, long-life DC motor designed for continuous operation.
• Can be used with a shut-off nozzle to control fluid flow precisely in specific applications.

Specifications

• Voltage: 24V DC
• Flow Rate: 100 liters per minute (22 gallons per minute) at 0.1m head
• Dimensions: Length: 163mm, Width: 120mm, Height: 122mm
• Maximum Recommended Head: 4 meters (13.1 feet)
• Fuse Size: 5A
• Maximum Current: 3.5A
• Material: Stainless steel body for long-lasting performance in harsh conditions
• Ports: ¾” BSP internal threaded ports for easy hose connection
• Operating Temperature: +4°C to +95°C
• Weight: 2.98 kg (Approx. 3.48 kg packed)
• Packaged Dimensions: L: 24.00 cm, H: 13.00 cm, W: 18.00 cm
• Continuous Duty: Yes, designed for continuous operation without overheating
• Motor Type: Long-life DC motor designed for durability and efficiency
• Port Configuration: ¾” BSP internal threaded ports, ensuring compatibility with a wide range of hoses and accessories
• Recommended Fuse: 7A for optimal protection against electrical overloads
• Pump Type: Centrifugal with high efficiency at low pressure

Compatibility and Application

• Ballast Transfer Systems: Ideal for transferring water or other liquids in marine ballast systems.
• Hot Water Circulation: Perfect for use in engine cooling and central heating systems, providing consistent flow and temperature regulation.
• Fuel and Liquid Transfer: Suitable for diesel, gas oil, kerosene, and paraffin transfer applications in marine and industrial settings.
• Industrial Use: Can be applied in industrial fluid handling systems, including irrigation, HVAC, and process systems.
• Vehicle and Machinery Use: Compatible with various vehicles or machinery requiring high-output liquid transfer at low pressure.

Benefits

• High flow rate (100 liters/min) ensures efficient fluid transfer in demanding applications.
• Durable stainless steel construction offers long-lasting performance in harsh and demanding environments.
• Compact design and easy installation make it perfect for tight or confined spaces, while minimizing maintenance needs.
• Wide fluid temperature range (4°C to 95°C) enables use in various environments, from cold to hot conditions.
• Reliable, continuously rated DC motor designed for uninterrupted service and high efficiency.
• Ability to use a shut-off nozzle gives users precise control over fluid flow in specific applications.
• Maximum recommended head of 4 meters makes it ideal for diverse fluid transfer tasks that require vertical lifting.
