ID
1331476
$ 258.85
1-2 weeks delivery time
-
+
The Jabsco 50880-1100 diaphragm pump unit for shower drain and bilge use delivers up to 16 L/min flow on 24V DC power with quiet operation and a 30-minute maximum continuous run rating. Its single-diaphragm design with joker valves supports extended dry running, while self-priming up to 3 m and a maximum recommended head of 6 m help handle demanding drainage and transfer tasks. Multi-positional mounting with 19 mm (3/4 in) ports and a compact, filter-less design make installation flexible and maintenance straightforward.
- Description
- Ask a Question
-

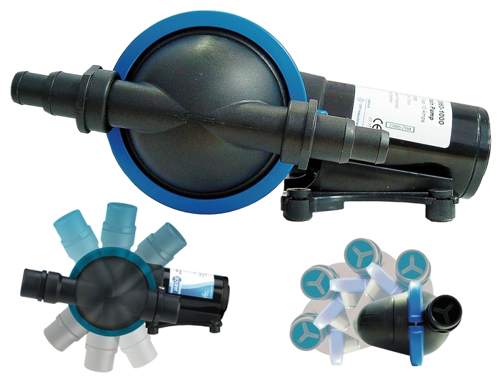

Jabsco 50880-1100 24V Diaphragm Pump Unit for Shower Drain and Bilge Use
The Jabsco 50880-1100 is a self-priming diaphragm pump designed for onboard drainage and water transfer duties. Built around a single-diaphragm pumping system, it supports flexible installation and is intended for applications such as shower and sink drainage as well as bilge pumping.
Application
- Shower drain and sink drain pumping
- Bilge pumping (including shallow bilges)
- Marine and RV applications
- Water transfer tasks such as filling tanks and running washdown systems (as described)
Technical Specifications
Order Number 00320119 Supplier Code 50880-1100 Barcode 671880581578 Voltage 24 Volts DC Pump Type Diaphragm (Single Diaphragm) Flow Rate Up to 16 L/min (also stated as 3.5 gpm and 4.2 US gpm) Self-Priming / Suction Height Up to 3 m vertical lift (also stated as 10 ft) Maximum Recommended Head Height 6 m Ports / Hose Connections 19 mm (3/4 in) internal diameter ports; 3/4 in hose barb ports; connections listed for 1/2 in BSP, 3/4 in hose, and 1 in hose; 25 mm (1 in) possible by shortening the hose sockets Maximum Current 2.5 A Recommended Fuse Size 5 A Maximum Continuous Working Time 30 minutes Dimensions (L x W x H) 294 x 159 x 132 mm Weight 2.98 kg Shipping Weight 3.80 kg
Product Details
- Valve System: Joker valves
- Installation Flexibility: Multi-positional mounting with a rotatable pump head (two axes stated)
- Duty Guidance: Suitable for intermittent duty; motor should not be run for more than 30 minutes continuously
- Design Notes: Compact, simple, filter-less design described as virtually unblockable and easier to maintain
- Materials / Protection: Corrosion-resistant parts stated; motor protection and periodic electrical checks are recommended, particularly in salt water areas
- Compliance: Complies with USCG 183.410 and ISO 8846 MARINE; ISO 8849 MARINE
- Portfolio Listing: Electric bilge pumps; electric waste water pumps
Features
- Self-priming operation up to 3 m for flexible mounting
- Single-diaphragm construction supports extended dry running without damage
- Quiet operation with consistent output for onboard drainage and transfer tasks
- Multi-position ports and 19 mm (3/4 in) connections support versatile installation
- Maximum recommended head height of 6 m for practical routing options
Service and Spare Parts
- Major Overhaul Kit / Rebuild Kit: Catalog SK880
- Kit Contents (as listed): Cover, waste pump joker valves, waste pump ports, diaphragm, hex head screws, and washer
-
