The Jabsco 50890-1100 diaphragm waste water pump is built for efficient waste evacuation from sinks, showers, and black water systems, with self-priming up to 3 meters for flexible installation. It delivers up to 19 liters per minute, supports 38 mm (1-1/2 inch) hose connections, and handles a maximum discharge head of 4 meters to move waste effectively onboard. A compact, multi-positional design with shrouded mechanical components enhances safety and mounting options, while intermittent-duty operation is rated for up to 30 minutes of continuous use and is capable of dry running without damage.
- Description
- Ask a Question
-

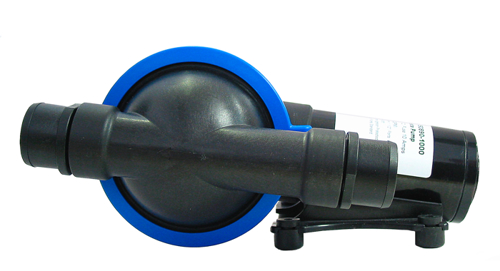

Jabsco 50890-1100 Diaphragm Waste Pump Unit (24V DC)
The Jabsco 50890-1100 is a compact diaphragm waste water pump designed to evacuate sink, shower, and black water waste in marine installations. Its self-priming diaphragm design, straight-through waste path, and multi-positional port layout support practical installation and dependable waste handling in demanding onboard environments.
Application
- Waste evacuation from sinks
- Waste evacuation from showers
- Black water systems
- Emptying holding tanks (passes solids in suspension)
- Suitable for leisure boats
- Suitable for yachts
- Suitable for commercial vessels
Technical Specifications
Supplier Code 50890-1100 Order Number 00320129 Barcode 671880581592 Voltage 24 V DC Flow Rate Up to 19 liters/minute (5 GPM) Maximum Discharge Head 4 m Self-Priming Vertical Lift Up to 3 m Connection Size 38 mm (1-1/2 inch) bore hose; 1-1/2 inch ID hose barb ports Dimensions (L x W x H) 278 mm x 161 mm x 132 mm Maximum Current (24V) 2.5 A Fuse Rating (24V) 5 A Maximum Current (12V, Listed) 8 A Fuse Rating (12V, Listed) 10 A Duty Rating Intermittent duty; motor should not be run for more than 30 minutes continuously Product Weight 3.02 kg Shipping Weight 3.50 kg Packed Weight (Approx.) 3.52 kg Discharge Pressure Up to 0.4 bar (5.8 PSI) Temperature Range 0 C to 70 C (32 F to 158 F)
Product Details
- Pump Type: Diaphragm waste water pump (single diaphragm design)
- Motor: Coupled to a 24 V DC motor; high-efficiency DC motor with overload protection
- Waste Path: Straight-through waste path to pass solids in suspension
- Port Orientation: Multi-positional ports; rotatable pump head (two axes) with 360 rotating head
- Construction: Reinforced plastic body with stainless steel hardware
- Safety: Mechanical components are shrouded; protected electrical components for marine environments
- Compliance (Listed): ISO 8846 Marine; ISO 8849 Marine Bilge Pump Standard; ISO 15083; USCG 183.410; BSEN 50081
- Service Parts (Listed): Major Overhaul Kit / Rebuild Kit, Catalog SK890 (service kit with cover, waste pump joker valves, washer)
Features
- Self-priming up to 3 m vertical lift for easier placement in tight spaces
- Quiet running operation with a compact footprint
- Dry-running capable and oil resistant (listed)
- No filter required (listed) to reduce maintenance effort
- Designed for solids handling via 1.5-inch ports and straight-through flow path
-
