The Jabsco 50890-1000 diaphragm waste pump delivers heavy-duty 12V waste handling for black and grey applications, including holding tank emptying and waste from sinks, showers, and toilets. A self-priming lift up to 3 meters, 38 mm (1 1/2 inch) hose ports, and up to 19 litres per minute output support strong solids-in-suspension performance, while multi-positional mounting and a rotatable head provide installation flexibility. Designed for tough environments, it can run dry without damage, requires no filter, includes shrouded mechanical parts for protection, and is rated for intermittent duty with up to 30 minutes continuous working time.
- Description
- Ask a Question
-

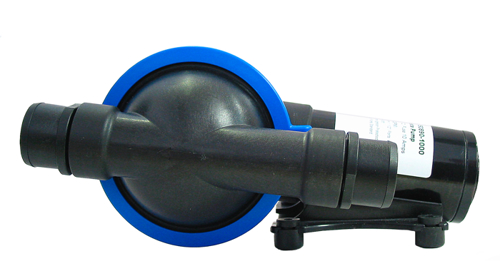

Jabsco 50890-1000 Self-Priming 12V Diaphragm Waste Pump
The Jabsco 50890-1000 is a compact, quiet-running diaphragm waste water pump and motor unit built for demanding waste transfer. Its straight-through waste path is designed to pass solids in suspension, making it a practical choice for emptying holding tanks and moving black and grey waste in marine, RV, and industrial systems.
Application
- Holding tank emptying
- Black and grey waste handling
- Sink waste
- Shower waste
- Toilet waste
- Marine waste removal
- RV waste removal
- Industrial wastewater transfer
Technical Specifications
Order Number 00320128 Supplier Code 50890-1000 Barcode 671880581585 Voltage 12 V DC Maximum Output Flow Rate Up To 19 Litres per Minute (4.2 Gallons per Minute; 5 US Gallons per Minute) Maximum Discharge Head 4 Metres (13.1 Feet) Self-Priming Vertical Lift Up To 3 Metres (9.5 Feet; 10 Feet) Connections 38 mm (1 1/2 Inch) Hose Bore; 1 1/2 Inch ID Hose Barb Ports Fuse Size 10 Amp Maximum Current 8 Amp Dimensions (L x W x H) 278 x 161 x 132 mm Weight 3.02 kg Shipping Weight 3.50 kg Packed Weight Approx. 3.52 kg Maximum Continuous Working Time 30 Minutes Operating Temperature +4 C to +60 C Relevant Standards ISO 8846 Marine; USCG Regulations for Ignition Protection; USCG 183.410; ISO 8849 Marine; BSEN 50081
Product Details
- Pump Type: Diaphragm waste water pump (single diaphragm design)
- Motor: Coupled to a 12 V DC motor
- Installation: Multi-positional ports and rotatable pump head (360 rotating head; rotatable on 2 axes)
- Duty Rating: Intermittent duty; motor should not be run for more than 30 minutes continuously
- Maintenance: No filter required
- Protection: Mechanical parts shrouded for safety
- Materials/Resistance Notes: Corrosion-resistant parts; oil resistant
- Product Portfolio (as listed): Electric bilge pumps; electric waste water pumps
Features
- Heavy-duty waste pump for black and grey waste handling
- Self-priming capability for reliable pumping with varying fluid levels
- Straight-through waste path supports solids in suspension
- 38 mm (1 1/2 inch) ports for good solids handling
- Dry running capability (runs dry without damage)
- Quiet-running, compact design for convenient installation
Installation and Use Notes
- If mounted vertically, the motor should be above the pump head.
- Use the provided rubber grommets to help absorb vibration.
- Use 1 1/2 inch ID, non-collapsible waste-type suction hose and secure with two stainless steel hose clamps at both ends.
- All suction connections must be airtight and free of sharp bends or restrictions.
- Do not use this pump for petrol, petroleum products, or any products with a flash point below 37 degrees C.
-
