ID
1331473
$ 508.87
1-2 weeks delivery time
-
+
The Jabsco 50840-2012 Cyclone centrifugal pump delivers high-flow, low-pressure transfer for tasks such as hot water circulation (including engine cooling and central heating) and ballast transfer using a 12V DC motor. Its stainless steel body supports durable, corrosion-resistant service, while the non-self-priming design requires a continuously flooded suction for reliable operation. With 3/4 inch BSP internal threaded ports, a stated yield of 100 L/min (with flows up to 110 L/min), and a maximum total head of 4 meters, it is built for continuous-rated circulation and transfer duties.
- Description
- Ask a Question
-

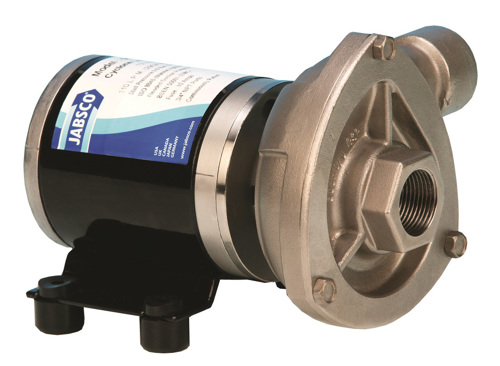

Jabsco 50840-2012 Cyclone 12V Centrifugal Circulation Pump Unit
The Jabsco 50840-2012 is a continuous-rated Cyclone centrifugal pump and motor unit designed for high-flow fluid handling in marine, industrial, and agricultural environments. Built with a stainless steel body and powered by a 12V DC motor, it supports demanding circulation and transfer tasks where dependable, low-pressure flow is required. This pump is non-self-priming and must be installed with a flooded suction (a continuously flooded inlet) for proper operation.
Application
- Ballast transfer systems
- Hot water circulation duties (including engine cooling and central heating systems)
- Water transfer and cooling systems
- Diesel transfer
- Systems requiring a continuously flooded inlet (flooded suction installation)
Technical Specifications
Supplier Code 50840-2012 Order Number 00320140 Pump Type Cyclone centrifugal pump, non-self-priming (low pressure) Rated Voltage 12V DC Flow / Yield 100 L/min (also stated: up to 110 L/min at low pressures; 29 GPM maximum; 22 GPM at 0.1 m head) Maximum Total Head 4 m Ports / Connections 3/4 inch BSP internal threaded ports Body Material Stainless steel Current Draw 9 A (also stated: maximum current draw 7 A) Recommended Fuse 10 A Fluid Temperature Range +4°C to +95°C (also listed: -10°C to +60°C) Maximum Pressure 0.6 bar (also listed: 2.5 bar) Suction Requirement Flooded suction required (non-self-priming) Suction Lift 2 m suction lift when wet Dimensions (H x W x L) 12.2 cm x 12.0 cm x 16.2 cm Weight 2.98 kg (also listed: approx. 3.48 kg packed; 3.70 kg shipping weight) Certifications / Compliance CE; ISO 9001; USCG 183.410; ISO 8846 Marine; ISO 8849 Marine Alternative To Jabsco 50830-2012 Product Portfolio Circulation Pumps
Product Details
- Construction: Robust stainless steel body paired with a long-life DC motor for durability and corrosion resistance.
- Operating mode: Continuous-rated for long-lasting operation in demanding circulation and transfer services.
- Installation guidance: Must be mounted so the inlet is continually flooded; can be mounted on any flat surface. If mounted vertically, ensure the motor is above the pump head.
- Control use: Suitable for systems that may use a shut-off nozzle for more precise fluid control.
- Service information: Spare parts available, including Seal Kit 50835-0000.
Features
- High-flow centrifugal performance for low-pressure circulation and transfer duties
- Non-self-priming design that supports flooded suction installations
- 3/4 inch BSP internal threaded ports for straightforward plumbing connections
- Designed for hot water circulation applications such as engine cooling and central heating
- Stainless steel body for long service life in harsh environments
Important Use Note
- Do not pump gasoline, petrol, or fluids with a flash point below 37°C.
-
