ID
1331467
$ 35.74
1-2 weeks delivery time
-
+
The Jabsco 46400-0004 Pumpgard inline strainer protects pumps by filtering particles from incoming water to reduce the risk of valve jamming and pump breakdowns. It uses a 40 mesh stainless steel filter screen inside a transparent, screw-off housing for fast visual inspection and easy cleaning without removal. Designed with 15 mm (1/2 in) male threaded inline connections, it supports potable water and salt water applications, with rated limits of up to 23 L/min (6 GPM) flow, 5 bar (70 PSI) pressure, and 70°C maximum temperature.
- Description
- Ask a Question
-

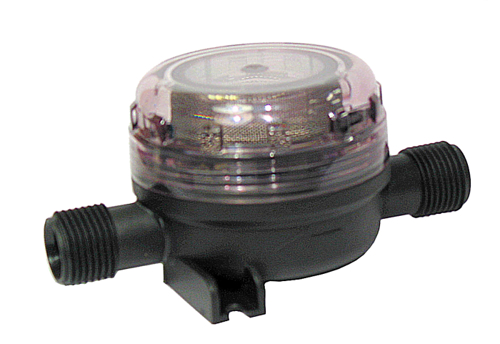

Jabsco 46400-0004 Inline Pump Inlet Strainer Unit
The Jabsco 46400-0004 is a fine inline filter/strainer designed to keep debris out of your pump and help prevent damage caused by particles in the water supply. Its transparent housing makes condition checks quick, while the screw-off top supports straightforward cleaning and debris removal.
Application
- Protects pumps by filtering particles from incoming water
- Ideal for water pressure systems and high pressure systems
- For potable water and salt water applications
Compatibility
- Alternative to Flojet 01740004
- Alternative to Flojet 01740000S
- Alternative to Jabsco 36400-1000
Technical Specifications
Brand Jabsco Supplier Code 46400-0004 Order Number 00320087 Barcode 671880534819 Connection Size 15 mm (1/2 in) Connections 2 x 1/2 in thread (external thread); inlet: 1/2 in QEST male thread; outlet: 1/2 in QEST male thread Filter Screen 40 mesh stainless steel (approximately 0.4 mm openings) Maximum Flow 23 L/min (6 GPM) Maximum Pressure 5 bar (70 PSI) Maximum Temperature 70°C Dimensions 120 mm (L) x 70 mm (W) x 60 mm (H); length approximately 121 mm x width approximately 70 mm x height approximately 57 mm Shipping Weight 0.20 kg
Product Details
- Type: Fine filter inline strainer / fresh water pump inlet strainer
- Design: Inline
- Housing: Transparent, screw-off for inspection and cleaning
- Materials: Base: Polypropylene; cover: Polysulfone; strainer: Stainless steel; cover O-ring: Buna-N
- Accessory: Jabsco accessory
Features
- Helps prevent pump damage by filtering water particles
- Transparent housing enables fast visual inspection
- Screw-off top supports quick cleaning and debris removal without removal
- Stainless steel 40 mesh filter screen for fine filtration
-
