ID
1331466
$ 35.74
1-2 weeks delivery time
-
+
The Jabsco 46400-0002 inline inlet strainer protects electric diaphragm fresh water pumps by capturing grit and particles at the pump inlet. Its clear, screw-off lid makes inspection and cleaning simple, while the fine 40 mesh stainless steel screen supports clean water intake for potable water and salt water applications. Designed for hose-to-hose installation with 2 x 13 mm (1/2 in) connections, it is rated for up to 16 LPM (4 GPM) flow, 5 bar (70 PSI) pressure, and 70 °C maximum temperature.
- Description
- Ask a Question
-

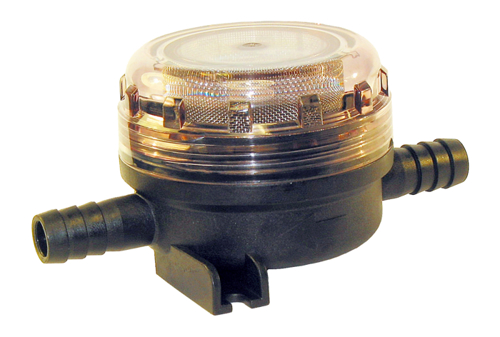

Jabsco 46400-0002 Inline Strainer Unit for Fresh Water Pump Inlets
This Jabsco inline strainer is installed at the inlet of an electric diaphragm fresh water pump to help stop debris before it reaches the pump’s internal components. By trapping grit and particles, it supports reliable pump operation and helps reduce the risk of valve jamming and pump breakdowns.
Application
- Electric diaphragm fresh water pumps (installed at the pump inlet)
- Water pressure systems
- High pressure systems
- Potable water applications
- Salt water applications
Compatibility
- Alternative to Flojet 01740002
- Alternative to Jabsco 36400-0000
Technical Specifications
Brand Jabsco Model 46400-0002 Supplier Code 46400-0002 Order Number 00320086 Barcode 671880534796 Connection Type Hose to Hose (Inline) Connections 2 x 13 mm (1/2 in) hose connection Inlet 13 mm (1/2 in) hose connection (inner diameter) Outlet 13 mm (1/2 in) hose connection (inner diameter) Filter Screen 40 mesh stainless steel (approximately 0.4 mm openings) Maximum Flow 16 LPM (4 GPM) Maximum Pressure 5 bar (70 PSI) Maximum Temperature 70 °C Dimensions (Approx.) Length 121 mm x Width 70 mm x Height 57 mm Shipping Weight 0.20 kg
Product Details
- Construction: Plastic body with clear lid for visual inspection
- Materials: Base polypropylene, cover polysulfone, strainer stainless steel, cover O-ring Buna-N
- Accessory Range: Part of Jabsco accessories
Features
- Captures particles at the pump inlet to help protect internal pump mechanisms
- Fine 40 mesh stainless steel screen supports clean water intake
- Transparent, screw-off housing enables quick inspection, cleaning, and servicing
-
