ID
1331468
$ 35.74
1-2 weeks delivery time
-
+
The Jabsco 46400 0010 snap-in inlet strainer helps protect fresh water pump systems by trapping grit before it reaches the pump valves and internals. It connects directly to a 19 mm (3/4") inner diameter hose and snaps into the inlet port of Jabsco Par-Max electric diaphragm fresh water pumps, using a clear, screw-off housing for fast inspection and cleaning. A 40 mesh stainless steel screen supports up to 27 LPM (7 GPM), with a maximum pressure of 5 bar (70 PSI) and temperature up to 70°C (158°F), making it suitable for both potable water and saltwater applications.
- Description
- Ask a Question
-

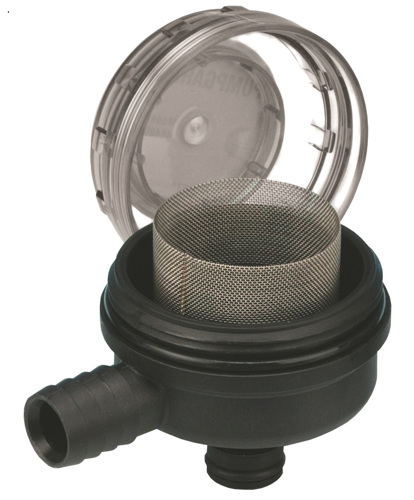

Jabsco 46400 0010 Snap In Fresh Water Pump Inlet Strainer
The Jabsco inlet strainer is a pump-side filtration accessory designed to keep grit and particles out of your water pump. By filtering debris at the inlet, it helps prevent valve jamming and reduces the risk of pump breakdowns, while the transparent, screw-off housing makes routine inspection and cleaning quick.
Application
- Fresh water pump inlet filtration for trapping grit and particles before they enter the pump
- Suitable for potable water applications
- Suitable for saltwater applications
- Ideal for water pressure systems and high-pressure systems
Compatibility
- Jabsco Par-Max electric diaphragm fresh water pumps (snap-in fit to the pump inlet port)
- Jabsco pumps (plug-in outlet port for 2 to 5 GPM pumps)
- Flojet pumps (plug-in outlet port for 2 to 5 GPM pumps)
- Alternative to Flojet 01740010
Technical Specifications
Brand Jabsco Supplier Code 46400-0010 Order Number 00320088 Barcode 671880534826 Inlet Connection 19 mm (3/4") inner diameter hose connection Outlet Plug-in port (male) for 2 to 5 GPM Jabsco and Flojet pumps Screen 40 mesh stainless steel (approximately 0.4 mm openings) Maximum Flow Rate 27 LPM (7 GPM) Maximum Pressure 5 bar (70 PSI) Maximum Temperature 70°C (158°F) Design 90° Dimensions Length approximately 96 mm; width approximately 70 mm; height approximately 83 mm Actual Weight 0.14 kg (approximately 0.34 kg packed) Shipping Weight 0.20 kg
Product Details
- Type: Fresh water pump inlet strainer, snap-in
- Housing: Transparent with a screw-off lid for inspection and cleaning
- Function: Prevents particles from jamming valves and causing pump breakdowns
- Materials:
- Base: Polypropylene
- Cover: Polysulfone
- Strainer: Stainless steel
- Cover O-Ring: Buna-N
- Port O-Ring: EPDM
Features
- Snap-in fit for secure, fast installation at the pump inlet
- 40 mesh stainless steel screen for fine filtration
- Clear housing supports quick visual inspection
- Screw-off lid enables quick cleaning and maintenance
- Built for up to 27 LPM (7 GPM) flow, 5 bar (70 PSI) pressure, and 70°C (158°F) temperature
-
