The Jabsco 46400-0012 snap-in inlet strainer helps protect fresh water pumps by filtering grit and debris before it enters the pump. It connects to a 13 mm (1/2 in) hose and snaps directly into the Par-Max pump inlet port, using a 40 mesh stainless steel filter screen and a clear, screw-off housing for fast inspection and cleaning. The 90° design supports up to 16 L/min (4 GPM) flow, with rated limits of 5 bar (70 PSI) and 70 °C for dependable service in marine and RV water systems.
- Description
- Ask a Question
-

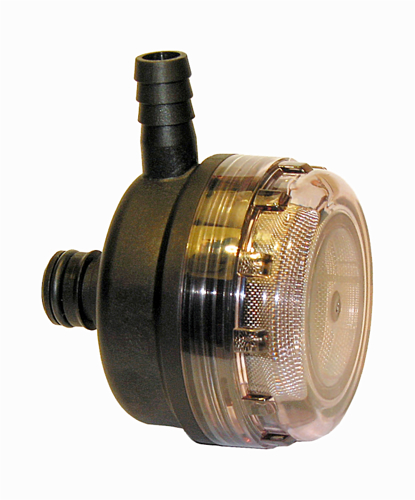

Jabsco 46400-0012 Snap-In Inlet Strainer Unit
The Jabsco 46400-0012 inlet strainer is a snap-in pre-filter designed to keep debris out of your pump, helping prevent particles from jamming valves and causing breakdowns. With a transparent screw-off housing and a stainless steel screen, it makes routine inspection and cleaning quick while supporting reliable water flow in onboard pressure water systems.
Application
- Jabsco Par-Max electric diaphragm fresh water pumps
- Par-Max pumps 1/2HB SS
- Jabsco pumps (25 GPM) via plug-in outlet port
- Flojet pumps (25 GPM) via plug-in outlet port
- Marine and RV fresh water systems
- Potable water applications
- Salt water applications
Technical Specifications
Supplier Code 46400-0012 Order Number 00320089 Barcode 671880534833 Design 90 Inlet Connection 13 mm (1/2 in) hose connection, inner diameter Outlet Connection Plug-in port (male) for 25 GPM Jabsco / Flojet pumps Filter Screen 40 mesh per square inch (approximately 0.4 mm openings) Maximum Flow 16 L/min (4 GPM) Maximum Pressure 5 bar (70 PSI) Maximum Temperature 70 C Dimensions (Approx.) Length 96 mm; Width 70 mm; Height 83 mm Shipping Weight 0.20 kg
Product Details
- Type: Fresh water pump inlet strainer
- Mounting: Fits directly into the Par-Max pump inlet port (snap-in)
- Housing: Transparent, screw-off housing for inspection and cleaning
- Construction: Plastic body with clear lid
- Accessory: Jabsco accessory
- Alternative Part: Alternative to Flojet 01740012
Features
- Helps prevent pump damage by filtering grit and debris before it enters the pump
- 40 mesh stainless steel filter screen for fine filtration
- Easy-to-remove screw-off lid for cleaning and servicing
- Transparent housing supports quick visual inspection
- Suitable for water pressure systems and high pressure systems
- Materials: Base polypropylene; cover polysulfone; strainer stainless steel; cover O-ring Buna-N; port O-ring EPDM
-
