The Jabsco 46200-0000 inline inlet strainer unit protects electric diaphragm bilge pumps by capturing grit and debris before it reaches the pump. A durable plastic body with a clear, screw-off lid makes inspection and cleaning quick, while the 20 mesh stainless steel filter screen helps prevent clogging and valve jamming. Designed for 2 x 19 mm (3/4 in) hose connections, it supports potable water and salt water applications and is specified for up to 27 L/min (7 GPM) flow in an inline configuration.
- Description
- Ask a Question
-

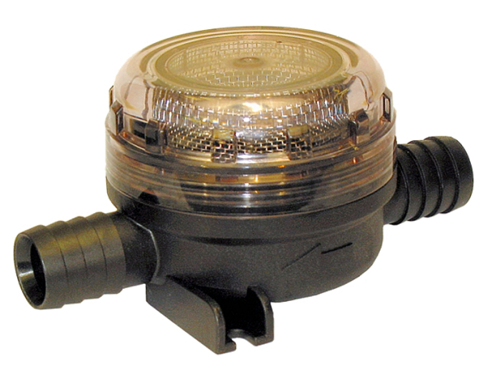

Jabsco 46200-0000 Pumpgard Inline Strainer Unit
The Jabsco 46200-0000 inlet strainer is an inline filter designed to sit on the inlet side of an electric diaphragm bilge pump, helping prevent debris and particles from entering and damaging internal components. Its transparent housing supports fast visual checks, and the screw-off top simplifies routine cleaning without complicated disassembly.
Application
- Electric diaphragm bilge pumps (installed on the inlet side)
- Bilge pumping applications
- Toilet rinse applications
- Open flow applications
- Potable water applications
- Salt water applications
Technical Specifications
Supplier Code 46200-0000 Order Number 00320084 Barcode 671880534765 Connection Size 2 x 19 mm (3/4 in) hose Inlet 19 mm (3/4 in) inner diameter hose connection Outlet 19 mm (3/4 in) inner diameter hose connection Mesh Size 20 mesh stainless steel filter screen Filter Opening (Approx.) 0.8 mm Maximum Flow 27 liters/minute (7 GPM) Maximum Pressure 5 bar (70 psi) Pressure Rating Suitable for use with standard bilge pumps up to 10 bar (145 psi) Operating Temperature Range -10 C to 60 C (14 F to 140 F) Maximum Temperature 70 C Dimensions 120 mm long, 70 mm wide, 60 mm high Dimensions (Approx.) Length approx. 121 mm / Width approx. 70 mm / Height approx. 57 mm Weight 0.11 kg Packed Weight (Approx.) 0.31 kg Shipping Weight 0,15 kg Packaged Dimensions L: 24.00 x H: 16.00 x W: 17.00 cm
Product Details
- Type: Inline inlet strainer for bilge pump protection
- Design: Inline
- Construction: Durable plastic body with a clear lid for inspection
- Screen: Stainless steel filter screen
- Seal Material: Buna-N cover O-ring
- Materials (Listed): Base: Polypropylene; Cover: Polysulfone; Strainer: Stainless steel
- Accessory Group: Jabsco accessories
Features
- Captures grit and debris to help protect pump internal components
- Transparent, screw-off housing enables easy inspection and cleaning
- Helps prevent particles from jamming valves and causing pump breakdowns
- 20 mesh stainless steel screen provides coarse filtration
- Compact format suited for installations where space is limited
-
