ID
1331436
$ 1,295.77
1-2 weeks delivery time
-
+
The Jabsco 37255-0092 toilet conversion kit upgrades compatible manual Jabsco toilets to a quiet 12V electric flush system for marine (and RV) use. It combines a PAR-Max 4 self-priming flush pump for sea, lake, or river water rinsing with a high-capacity waste macerator and bowl discharge pump for smooth waste handling, while keeping water use to approximately 1–2 liters per flush. Supplied with a single-button flush actuator and dual-function water level control switch, it supports 19 mm (3/4 in) inlet and 25 mm (1 in) discharge connections, includes a 38 mm (1-1/2 in) waste plumbing adaptor, and specifies 10 A amperage with a 25 A fuse for dependable operation.
- Description
- Ask a Question
-
Jabsco 37255-0092 Quiet Flush 12V Toilet Conversion System
The Jabsco 37255-0092 conversion kit is built to replace manual pumping with an electric flushing setup, delivering quiet and efficient operation in marine environments. It is designed as a practical upgrade path for compatible toilet installations, combining a dedicated flush water pump with powered waste handling in one conversion package.
Application
- Converts manual toilets to an electric flushing system
- Designed for quiet and efficient operation in marine environments
- Suitable for sea, lake, or river water flush supply
- Also presented for marine or RV toilet conversions
Compatibility
- Manual Jabsco toilet 29090
- Manual Jabsco toilet 29120
- Other models using a standard bowl configuration with a 95.3 mm (3-3/4 in) diameter bolt circle and a 4-hole pattern in the base (verify flange dimensions against the dimensional drawing)
Technical Specifications
Supplier Code 37255-0092 Order Number 00320051 Voltage 12 Volts Amperage 10 A Recommended Fuse Size 25 A Water Consumption Approximately 1 2 liters per flush Inlet Connection 19 mm (3/4 in) inlet hose Discharge Connection 25 mm (1 in) discharge hose Waste Plumbing Adaptor Adaptor included for 38 mm (1-1/2 in) waste plumbing Dimensions (H x W x L) 101 mm x 181 mm x 337 mm Dimensions (H x W x D) 355 x 415 x 333 mm Shipping Weight 6.90 kg Barcode Not available
Product Details
- Conversion type: Manual-to-electric toilet flushing upgrade
- Flush water pump: PAR-Max 4 self-priming pump (supplies sea or lake water to rinse the bowl)
- Waste handling: High-capacity waste macerator and bowl discharge pump
- Controls: Single-button flush actuator with dual-function water level control switch

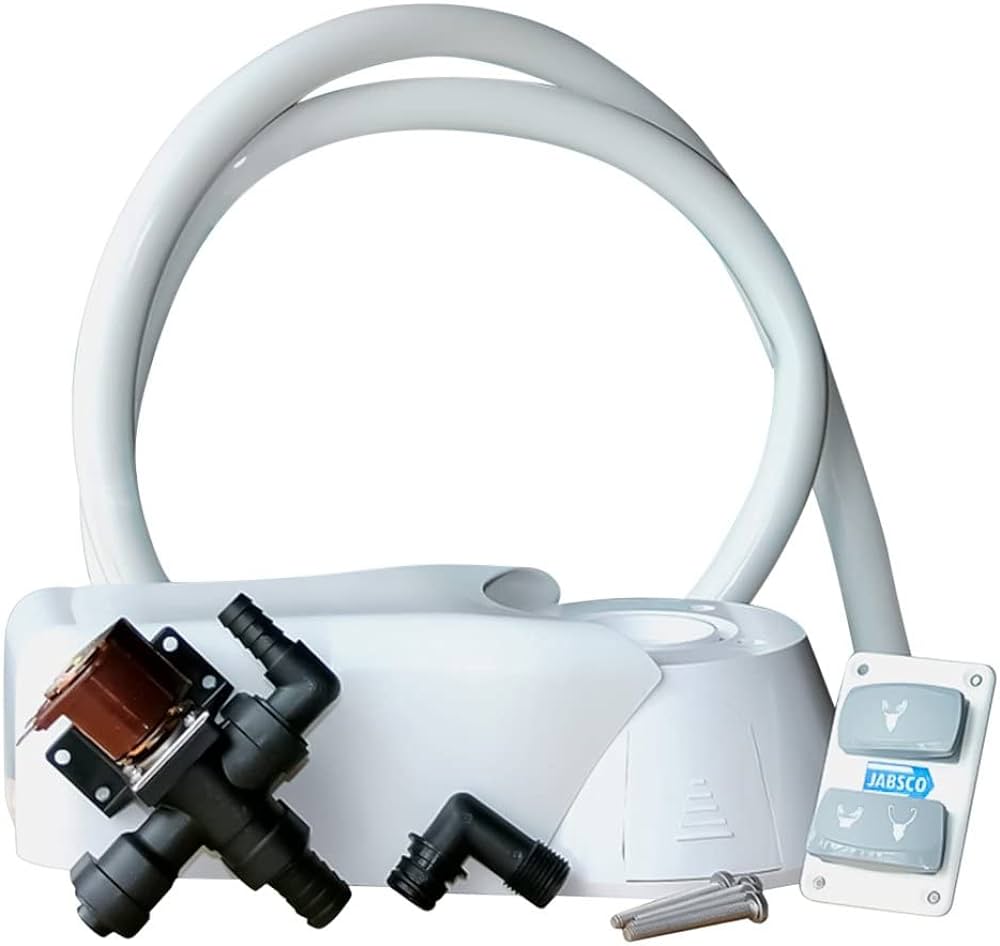

- Included items: Complete motorized base assembly, bowl gasket, four bolts and washers for the bowl, dedicated PAR-Max 4 flush pump, 19 mm (3/4 in) white hose, 25 mm (1 in) discharge port adaptor, and control switch
- Product portfolio: Electric toilets
Features
- Low noise operation for a quieter onboard experience
- Water-efficient flushing at approximately 1 2 liters per flush
- Flexible plumbing support with included adaptor for 38 mm (1-1/2 in) waste plumbing
- Easy installation (as stated in the product information)
Documentation Notes
- Manual and spare part overview referenced for the 37255 conversion series (English)
- Quiet Flush toilet 37245 manual and spare part overview referenced as technically the same and multilingual (German, English, Italian, French, Swedish, Dutch, Spanish)
-
