ID
1331435
$ 506.71
1-2 weeks delivery time
-
+
The Jabsco 37202-2024 diaphragm bilge and shower pump delivers 24V DC pumping performance with up to 13 L/min (about 2.8–2.9 GPM) flow for marine drainage needs. It self-primes up to 2 m and supports a maximum recommended head of 3 m, while the diaphragm design allows extended dry running without damage. With 19 mm (3/4 in) hose connections, quiet running, corrosion-resistant construction, and an included 20-mesh strainer, it is built for reliable service in demanding onboard environments.
- Description
- Ask a Question
-

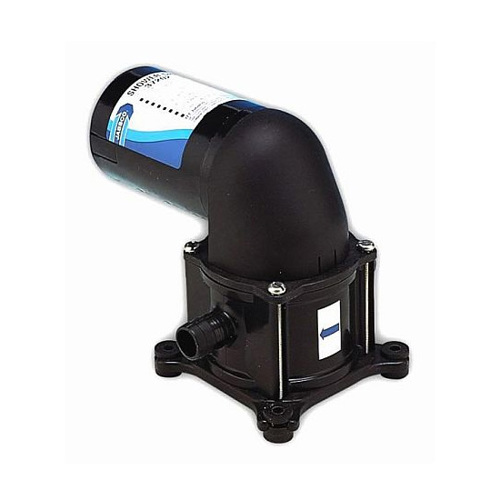

Jabsco 37202-2024 24V Self-Priming Diaphragm Drain Pump
The Jabsco 37202-2024 is a diaphragm pump designed for marine drainage duties such as bilge removal and shower or sink drain applications. Built for 24V DC systems, it combines dependable self-priming operation with the ability to run dry for extended periods, helping support reliable onboard pumping in demanding conditions.
Application
- Bilge pumping
- Shower drain pumping
- Sink drain pumping
- Marine and other DC-powered systems requiring 24V operation
- Suitable for shallow bilge boats where effective low-water removal is beneficial
Technical Specifications
Order Number 00320123 Supplier Code 37202-2024 Barcode 671880521062 Pump Type Diaphragm Voltage 24 V DC Output 13 L/min (2.8–2.9 GPM stated) Open Flow 3 GPM Capacity (As Stated) 720 L/h Maximum Recommended Head 3 m Suction Height (Self-Priming) 2 m (6 ft stated) Hose Connections 19 mm (3/4 in) ID hose Fittings 2 × 19 mm Dimensions (L × W × H) 130 × 165 × 150 mm Dimensions (As Stated) Height 15.6 cm; Width 11.1 cm; Length 16.5 cm Product Weight 2.08 kg Shipping Weight 2.60 kg Fuse Size 5 A
Product Details
- Coupled to a 24V DC motor
- Designed to be mounted in an accessible, high, dry location to simplify installation and improve serviceability (self-priming capability supports this)
- Ignition protected to ISO 8846 Marine; meets BS EN 50081 and ISO 8849 Marine
- Spare parts available
Features
- Self-priming up to 2 m vertical lift
- Extended dry running capability (single diaphragm design) to help prevent damage when running without water
- Quiet running with shielded drive
- Corrosion-resistant materials for marine environments
- Supplied complete with Pumpguard strainer
- Includes 20-mesh strainer for 19 mm (3/4 in) ID hose
-
