ID
1331400
$ 491.61
1-2 weeks delivery time
-
+
The Jabsco 35770-0094 ventilation blower delivers heavy-duty, continuous-duty airflow for demanding marine spaces, running on 24V DC and providing 7.1 m³/min (250 CFM) at open flow. Its flex mount design allows 360º outlet direction adjustment and supports 100 mm (4 in) ducting for versatile installation. Corrosion-resistant materials, a reinforced duroplastic housing, and a motor rated for approximately 5,000 operating hours help ensure long service life, while ignition protection compliance to ISO 8846 MARINE and USCG 183.410 supports use in bilges and engine compartments.
- Description
- Ask a Question
-

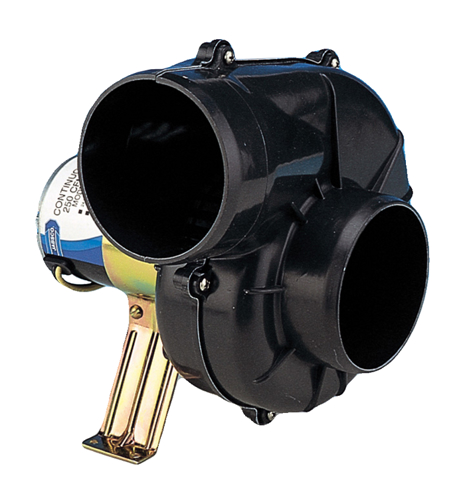

Jabsco 35770-0094 24V Flexmount Marine Ventilation Blower
Built for commercial and heavy-duty marine ventilation, the Jabsco 35770-0094 is a continuous-duty blower that moves high volumes of air for spaces such as bilges, engine compartments, galleys, and deck areas. A flex mount bracket lets you rotate the blower to aim the discharge in virtually any direction, simplifying duct routing while maintaining reliable airflow.
Application
- Bilge ventilation
- Engine compartment ventilation
- Galley ventilation
- Deck ventilation
- Commercial or heavy-duty marine settings
Technical Specifications
Supplier Code 35770-0094 Order Number 00320291 Barcode 671880523738 Voltage 24 V DC Air Output (Open Flow) 7.1 m³/min (250 CFM) Duct Connection 100 mm (4 in) Current Draw Approx. 6 A Recommended Fuse 10 A Dimensions (H x W x L) 22.9 cm x 23.5 cm x 23.8 cm Weight 3.2 kg Shipping Weight 4.50 kg Motor Duty / Life Continuous Duty; Approx. 5,000 Operating Hours Mounting Flex Mount; Foot Mounting
Product Details
- Outlet adjustment: Flexible mounting with 360º adjustable outlet direction
- Construction: Reinforced duroplastic housing; corrosion-resistant materials
- Standards / compliance: ISO 8846 MARINE and USCG 183.410 ignition protection compliant; complies with ISO 9097 MARINE; conforms with BSEN 50081-2 for suppression of electro-magnetic interference; N.M.M.A. type accepted
Features
- Efficient high volume airflow
- Continuous-duty high performance blower design
- Extended motor service life (approximately 5,000 operating hours)
- Compatible with 100 mm (4 in) ducting
- Low-current draw (approx. 6 A) with 10 A fuse recommendation
- Corrosion-resistant materials and reinforced housing for marine environments
-
