ID
1331403
$ 295.33
1-2 weeks delivery time
-
+
The Jabsco 36740-0010 flex-mount ventilation blower delivers 24V airflow output of 4.2 m³/min (150 CFM) through 75 mm (3 in) ducting, combining quiet Delrin rotors with a corrosion-resistant reinforced plastic housing for dependable marine ventilation. Ignition-protected compliance to ISO 8846 MARINE and USCG 183.410 supports safe fume removal use, while the 360° adjustable flexible mounting helps optimize outlet direction and duct routing in confined spaces. Low current draw (approx. 3.3 A) with a 5 A fuse recommendation rounds out a practical, marine-ready blower package.
- Description
- Ask a Question
-

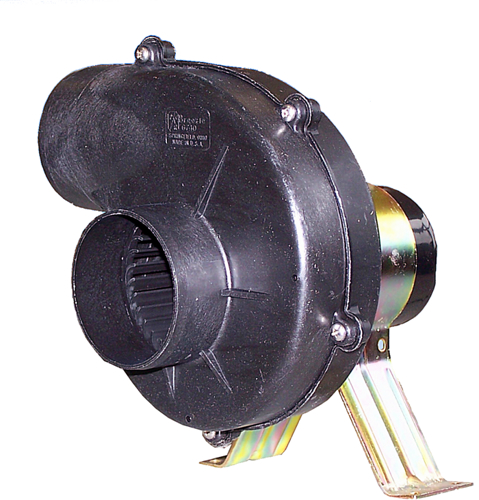

Jabsco 36740-0010 24V Flex-Mount Marine Ventilation Blower
The Jabsco 36740-0010 is a 24V DC ventilation blower built for efficient air intake or extraction in confined marine spaces. With flexible mounting that allows the outlet direction to be adjusted, it supports practical duct routing while keeping noise low thanks to quiet-running Delrin rotors and a corrosion-resistant reinforced plastic housing.
Application
- Ventilation for bilges
- Engine compartments
- Fuel compartments
- Galleys
- Heads
- Accommodation spaces
- Deck ventilation
- Primarily intended for intermittent duty cycles such as evacuating fuel vapors from bilge areas
Technical Specifications
Supplier Code 36740-0010 Order Number 00320285 Barcode 671880031998 Voltage 24 V DC Airflow Output (Open Flow) 4.2 m³/min (150 CFM) Current Draw Approx. 3.3 A Recommended Fuse Size 5 A Ducting / Hose Connection 75 mm (3 in) Dimensions (Listed) Height 235 mm, Width 200 mm, Length 200 mm Dimensions (Also Listed) Length 200 mm, Height 230 mm, Width 220 mm Packaged Dimensions 22.00 cm (L) x 17.00 cm (H) x 19.00 cm (W) Product Weight (Listed) 2.32 kg Weight (Also Listed) Approx. 2.34 kg (approx. 2.84 kg packed) Shipping Weight 2.80 kg
Product Details
- Rotor material: Delrin (quiet-running, dimensionally stable)
- Housing: Reinforced plastic; corrosion-resistant materials throughout
- Mounting: Flexible mounting with 360° adjustable outlet direction
- Mounting method (listed): Foot mounting
- Installation detail (listed): Outlet flange mounts directly on a bulkhead
- Design detail (listed): Radial design; mounting collar (supplied) attaches around the motor and allows rotation for easier duct routing
- Duct connection style (listed): Slip-on inlet and outlet ducting connections
Features
- High-volume air intake or extraction with minimal noise
- Corrosion-resistant construction suited to marine environments
- Ignition protected; compliant with ISO 8846 MARINE and USCG 183.410
- Also listed as complying with ISO 9097 MARINE; CE marked and N.M.M.A. type accepted
- Suitable for removing fumes from gasoline engine compartments prior to starting
- Maximum motor life is approximately 1000 hours when used for longer duty-cycle air circulation applications
- Mount away from direct heat exceeding 180 °F to help prevent distortion of the blower wheel or housing
Spare Parts
- Catalog 34742-0001: Blower wheel
-
