ID
1331398
$ 540.80
1-2 weeks delivery time
-
+
The Jabsco 35760-0094 continuous-duty ventilation blower delivers 7.1 m³/min (250 CFM) airflow from a 24V DC supply for reliable air intake or extraction in marine spaces. Built with a durable, corrosion-resistant reinforced duroplastic housing and a flange mount for direct bulkhead installation, it supports 100 mm (4 in) ducting connections and is designed for approximately 5,000 operating hours. Ignition protection compliance to ISO 8846 MARINE and USCG 183.410 makes it well-suited for ventilating bilges, engine compartments, galleys, and decks on gasoline-powered boats, as well as demanding engine-room installations.
- Description
- Ask a Question
-

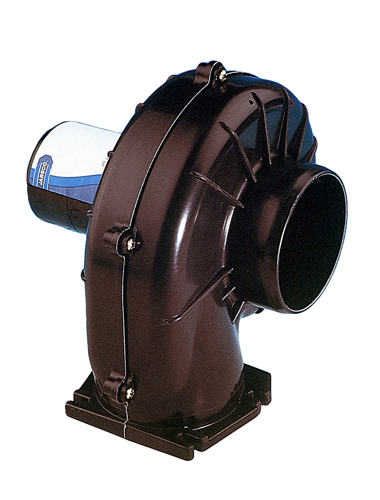

Jabsco 35760-0094 Continuous-Duty 24V Ventilation Blower
The Jabsco 35760-0094 is a heavy-duty marine blower engineered for continuous ventilation where dependable airflow and long motor life are essential. Its flange-mount design enables direct mounting to a bulkhead, helping simplify duct runs while supporting effective intake or extraction in demanding onboard compartments.
Application
- Ventilation of bilges
- Ventilation of engine compartments
- Ventilation of galleys
- Ventilation of decks
- Suitable for removing fumes from engine compartments of gasoline-powered boats before starting
- Designed for continuous-duty use in demanding environments such as engine rooms on commercial vessels and charter yachts
Compatibility
- Compatible with 100 mm ducting connections
- Compatible with 4 in ducting connections
Technical Specifications
Type Heavy-duty blower Duty Rating Continuous duty Voltage 24 V DC Air Output (Open Flow) 7.1 m b3/min (250 CFM) Motor Life Designed for approximately 5,000 operating hours Current Approx. 6 A (maximum current 6 A stated) Recommended Fuse 10 A Duct Connection 100 mm (4 in) Mounting Type Flange mount Dimensions (Stated) Height 22.9 cm, Width 22.2 cm, Length 23.8 cm Dimensions (Stated) 240 mm long, 230 mm high, 220 mm wide Weight (Stated) 2.7 kg Weight (Stated) 2.95 kg (approx.) Packed Weight (Stated) Approx. 3.45 kg Shipping Weight (Stated) 4.50 kg Packaged Dimensions (Stated) L 28.00 x H 34.00 x W 29.00 cm Compliance ISO 8846 MARINE; USCG 183.410; ISO 9097 MARINE; BSEN 50081-2; N.M.M.A. Type Accepted Order Number 00320289 Supplier Code 35760-0094 Barcode 671880522144
Product Details
- Housing: Robust reinforced duroplastic housing; tough reinforced thermoset plastic housing stated
- Durability: Corrosion-resistant materials throughout for marine environments
- Installation: Flange mount allows installation in any position on a flat surface; outlet flange mounts directly on the bulkhead
- Function: High-volume, efficient airflow for intake or extraction
- Installation Note (Stated): Mount away from extreme heat to help prevent distortion of the blower wheel or housing
Features
- High-volume, efficient airflow
- Continuous-duty high-performance motor
- Extended motor service life (approximately 5,000 hours stated)
- Ignition protected to ISO 8846 MARINE and USCG 183.410
- Direct bulkhead flange mounting to minimize ducting
- Low current draw (approximately 6 A stated)
-
