ID
1331402
$ 324.85
1-2 weeks delivery time
-
+
The Jabsco 36740-0000 flex-mount blower delivers high-volume ventilation from a 12V DC motor, providing 4.2 m³/min (150 CFM) airflow for efficient air intake or extraction. Built with corrosion-resistant materials and a quiet-running design, it supports 75 mm (3 in) ducting and suits spaces such as engine rooms, bilges, fuel compartments, galleys, decks, and head compartments. Flexible mounting allows 360° outlet adjustment, while ignition protection compliance (ISO 8846 MARINE and USCG 183.410) supports fume removal use before starting gasoline-powered boats.
- Description
- Ask a Question
-

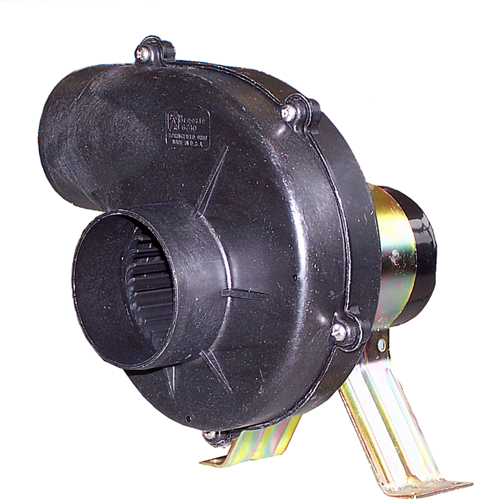

Jabsco 36740-0000 12V Flexmount Ventilation Blower Unit
The Jabsco 36740-0000 is a compact, high-output DC blower designed to provide effective ventilation for marine (and automotive) environments. It is intended for air intake or extraction and is commonly used for evacuating fuel vapors from bilge areas, with a quiet-running design and corrosion-resistant construction to support demanding onboard conditions.
Application
- Engine rooms and engine compartments
- Bilges (fuel vapor evacuation before startup)
- Fuel compartments
- Galleys
- Head compartments
- Deck ventilation
Technical Specifications
Brand Jabsco Supplier Code 36740-0000 Order Number 00320284 Barcode 671880567060 Rated Voltage 12 V DC Airflow Output 4.2 m³/min (150 CFM) at open flow Maximum Current 6.8 A Fuse Size 10 A Duct / Hose Connection 75 mm (3 in) Mounting Flexible mount (flexmount); foot mounting listed Product Dimensions (Listed) 200 mm (L) × 230 mm (H) × 220 mm (W) Dimensions (Also Listed) 20.0 cm (L) × 23.5 cm (H) × 20.0 cm (W) Product Weight 2.32 kg Shipping Weight 2.80 kg Packed Weight (Listed) 2.82 kg Packed Dimensions (Listed) 22.00 cm (L) × 17.00 cm (H) × 19.00 cm (W) Compliance ISO 8846 MARINE and USCG 183.410 compliant (ignition protected)
Product Details
- Outlet flange mounts directly on a bulkhead.
- Radial blower design with ports designed for slip-on flexible ducting connections.
- Intermittent-duty focus for tasks such as evacuating fuel vapors from bilge areas; maximum motor life listed as approximately 1000 hours.
Features
- Quiet-running design for improved onboard comfort
- Corrosion-resistant materials throughout for durability
- Flexible mounting enables 360° adjustment of outlet direction
- Dimensionally stable, quiet-running Delrin rotors
- Tough reinforced plastic housing
- Ignition protected for gasoline-engine compartment fume removal prior to startup (ISO 8846 MARINE and USCG 183.410)
Spare Parts (Listed)
- Catalog # 34742-0001: Blower wheel
-
