The Jabsco 35770-0092 heavy-duty ventilation blower delivers 7.1 m³/min (250 CFM) airflow at open flow from a 12V DC continuous-duty motor engineered for roughly 5,000 hours of operation. Its flex mounting system allows 360º outlet adjustment for easier routing in tight spaces, while corrosion-resistant materials and a reinforced duroplastic housing support long-term use in marine engine spaces and bilges. Designed for 100 mm (4") duct connections, it draws approximately 11A with a recommended 15A fuse and meets ISO 8846 MARINE and USCG 183.410 ignition protection standards for safer ventilation of bilges, engine compartments, galleys, and decks.
- Description
- Ask a Question
-

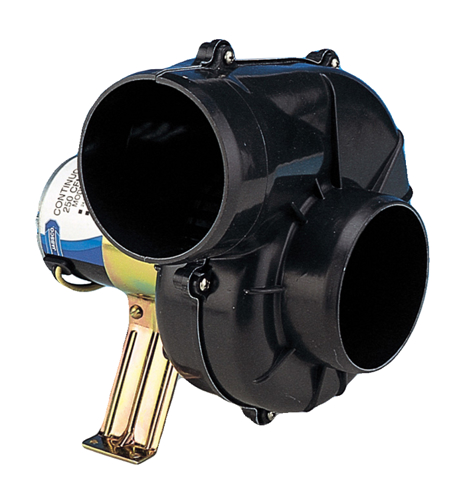

Jabsco 35770-0092 Continuous-Duty Flexmount Ventilation Blower
The Jabsco 35770-0092 is a high-performance, heavy-duty 12V DC blower built for continuous ventilation in demanding marine environments. With a flexible mounting system that lets you rotate the blower to direct the discharge in virtually any direction, it supports cleaner, more practical duct runs for engine spaces, bilges, and other onboard compartments.
Application
- Continuous ventilation of bilges
- Engine compartments and engine rooms (including commercial vessels and charter yachts)
- Galleys
- Deck areas
- Suitable for removing fumes from engine compartments of gasoline-powered boats before starting (ignition protected)
Technical Specifications
Supplier Code 35770-0092 Order Number 00320290 Barcode 671880520157 Voltage 12 V DC Air Output (Open Flow) 7.1 m³/min (250 CFM) Duct Connection 100 mm (4 in) Amperage Approximately 11 A Recommended Fuse 15 A Motor Duty / Life Continuous duty; engineered for roughly 5,000 hours Dimensions (Stated) Height 22.9 cm; Width 23.5 cm; Length 23.8 cm Dimensions (Also Stated) 230 mm (L) x 250 mm (H) x 240 mm (W) Weight 3.2 kg Packed Weight (Stated) Approximately 3.70 kg packed Shipping Weight (Stated) 4.50 kg
Product Details
- Mounting: Flex mount system with 360º outlet adjustment; mounting type stated as foot mounting
- Construction: Corrosion-resistant materials with a reinforced duroplastic (thermoset plastic) housing
- Ducting Interface: Inlet and outlet ports designed for slip-on flexible duct connections
- Compliance: Meets ISO 8846 MARINE and USCG 183.410 ignition protection standards; complies with ISO 9097 MARINE; conforms with BSEN 50081-2 for suppression of electromagnetic interference; N.M.M.A. type accepted
Features
- High-volume airflow with efficient performance
- Continuous-duty operation for heavy-use installations
- 360º adjustable outlet direction for versatile installation
- Durable, marine-ready housing and corrosion-resistant build
- Ignition-protected design to support safer ventilation in marine engine spaces and bilges
-
