The Jabsco 35760-0092 continuous duty ventilation blower delivers high-volume airflow of 7.1 m³/min (250 CFM) on 12V DC power for demanding commercial marine use. Its reinforced duroplastic housing uses corrosion-resistant materials, while the approximately 5,000-hour motor life supports long service intervals. A 100 mm (4 in) duct connection and flange-mount outlet allow direct bulkhead mounting, and ignition-protection compliance to ISO 8846 MARINE and USCG 183.410 helps support safer engine-compartment ventilation.
- Description
- Ask a Question
-

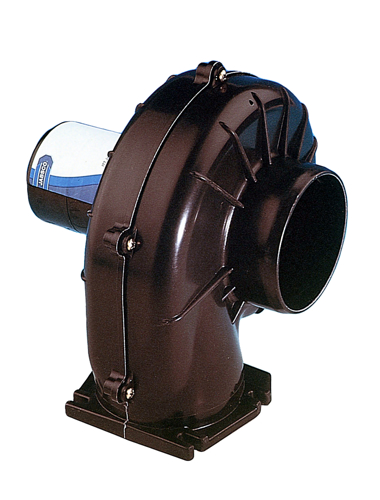

Jabsco 35760-0092 Continuous Duty Marine Ventilation Blower
The Jabsco 35760-0092 is a heavy-duty 12V DC blower built for continuous operation where reliable ventilation is critical. With a flange-mount outlet designed to fasten directly to a bulkhead and a 100 mm (4 in) ducting connection, it supports efficient air movement for commercial vessels and other high-use installations.
Application
- Engine rooms on commercial vessels
- Charter yachts and other heavy-duty installations
- Bilges
- Engine compartments
- Galleys
- Deck areas
- Removing fumes from engine compartments of gasoline-powered boats before starting (ignition protected)
Technical Specifications
Brand Jabsco Supplier Code 35760-0092 Order Number 00320288 Barcode 671880522694 Voltage 12V DC Airflow Output (Open Flow) 7.1 m³/min (250 CFM) Current Draw Approx. 11 A (maximum current stated as 11 A) Recommended Fuse Size 15 A Motor Life Approx. 5,000 operating hours Ducting Connection 100 mm (4 in) Dimensions (Set 1) Height 22.9 cm; Width 22.2 cm; Length 23.8 cm Dimensions (Set 2) 240 mm (L) x 230 mm (H) x 220 mm (W) Weight 2.7 kg; also listed as 2.95 kg actual Packed Weight Approx. 3.45 kg packed Shipping Weight 4.50 kg Packaged Dimensions 28.00 cm (L) x 34.00 cm (H) x 29.00 cm (W)
Product Details
- Duty rating: Continuous duty, high-performance blower
- Mounting: Mounts in any position on any flat surface; outlet flange mounts directly on the bulkhead
- Construction: Robust reinforced duroplastic / thermoset plastic housing with corrosion-resistant materials
- Ventilation role: High-volume intake or extraction
- Standards and compliance: Meets ISO 8846 MARINE and USCG 183.410 ignition protection standards; NMMA type accepted; complies with ISO 9097 MARINE; conforms with BSEN 50081-2 for suppression of electro-magnetic interference
Features
- Efficient high-volume airflow for commercial marine ventilation needs
- Extended motor service life designed for approximately 5,000 hours
- Corrosion-resistant materials to support harsh marine environments
- Flange-mount outlet helps minimize ducting by fastening discharge directly to a flat surface
-
