ID
1331396
$ 192.30
1-2 weeks delivery time
-
+
The Jabsco 35515-0010 flex mount blower delivers efficient 12V ventilation with 3 m³/min (105 CFM) airflow and 75 mm (3 in) duct connections for bilge, engine compartment, and deck air extraction or intake. Quiet Delrin rotors and a corrosion-resistant reinforced plastic housing support long-term marine use, while the 360° adjustable outlet direction simplifies installation in tight spaces. Ignition protection compliance (ISO 8846 MARINE and USCG 183.410) enhances safety for gasoline-powered boats, with approximately 4.4A current draw and a recommended 6A fuse for straightforward electrical integration.
- Description
- Ask a Question
-

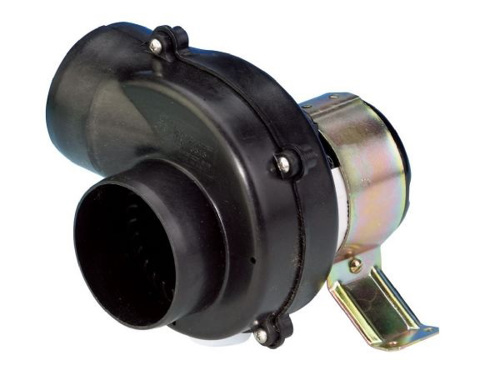

Jabsco 35515-0010 Flex Mount 12V Ventilation Blower
The Jabsco 35515-0010 is a compact 12V DC marine blower designed to provide effective ventilation where fumes, heat, and moisture can build up. Its flex mount design allows the blower to be positioned for practical duct routing, helping support cleaner, safer airflow in onboard compartments.
Application
- Bilge ventilation (including evacuating fuel vapors prior to startup)
- Engine compartment ventilation
- Deck ventilation
- Galley ventilation
- Accommodation ventilation
- Head compartment ventilation
- General air circulation applications (longer duty cycles noted below)
Technical Specifications
Type Flex mount blower (radial design) Rated Voltage 12V DC Airflow Output 3 m³/min (105 CFM) at open flow Duct Connection Size 75 mm (3 in) Current Draw Approx. 4.4A Recommended Fuse 6A Dimensions (H x W x L) 12.7 cm x 14.0 cm x 17.2 cm Weight 1.34 kg Color Black Order Number 00320283 Supplier Code 35515-0010EU Barcode 671880030526 Ignition Protection Standards ISO 8846 MARINE; USCG 183.410 Additional Compliance Complies with ISO 9097 MARINE; N.M.M.A. type accepted; CE marked
Product Details
- Rotor material: Dimensionally stable, quiet-running Delrin rotors
- Housing: Tough reinforced plastic made of corrosion-resistant materials
- Mounting: Flexible mounting with 360° adjustment of outlet direction; supplied mounting collar
- Connections: Slip-on inlet and outlet ducting connections; ports designed for flexible ducting
- Duty guidance: Primarily intended for intermittent duty cycles such as evacuating fuel vapors from bilge areas; for longer duty cycles, maximum motor life is approximately 1000 hours
- Installation note: Mount away from extreme heat (more than 130°F) to help prevent distortion of the blower wheel or housing
- Service: Spare parts available
Features
- High-volume, efficient airflow output
- Low current draw for 12V electrical systems
- Corrosion-resistant construction for marine environments
- Ignition protection compliance for gasoline-powered boats
- Outlet can be oriented in any direction for easier duct routing
-
