ID
1331289
$ 520.97
1-2 weeks delivery time
-
+
The Jabsco 23620-4003 Mini Puppy impeller pump is a compact, continuously rated unit for bilge transfer and general washing, built with a bronze pump head/body and an oil-resistant nitrile impeller. 12V DC operation delivers up to 7.4 L/min free flow (approx. 6 L/min at 2 m head), with self-priming capability stated up to 2 m and also 1.5 m suction height. It is specified at 5 A current draw with a 7.5 A fuse (also listed with a 10 A fuse requirement), supports pressures up to 2 bar (30 psi), and offers multiple connection options including 12.5 mm (1/2 in) bore hose and 25 mm (1 in) hose ports, plus a 9.5 mm (3/8 in) BSP male threaded fitting option (not included).
- Description
- Ask a Question
-

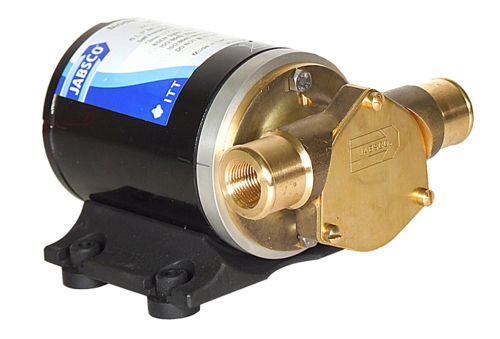

Jabsco 23620-4003 Mini Puppy 12V Bilge and Wash Pump Unit
The Jabsco Mini Puppy is a self-priming flexible impeller pump and motor assembly designed for bilge transfer and deck or general washdown duties. With bronze construction and a nitrile impeller, it combines durability with a simple, serviceable design for routine marine pumping tasks.
Application
- Bilge transfer
- Deck wash and general washing
- General purpose use
Technical Specifications
Brand Jabsco Supplier Code 23620-4003 Order Number 00320134 Barcode 671880551328 Voltage 12V DC Flow Rate (Free Flow) Up to 7.4 L/min (also listed as up to 7 L/min) Flow Rate (At Head) Approx. 6 L/min at 2 m head (also listed as output 6 L/min) Self-Priming / Suction Height Up to 2 m (also stated as 1.5 m) Maximum Pressure Up to 2 bar (30 psi) Current Draw 5 A Fuse Size 7.5 A (also listed as 10 A) Dimensions 80 mm (H) x 120 mm (W) x 150 mm (L); also listed as 165 mm (L) x 84 mm (W) x 83 mm (H) Packaged Dimensions 24 cm x 11 cm x 13 cm Weight 2.48 kg (also listed as approximately 2.98 kg when packed) Shipping Weight 3.20 kg
Product Details
- Pump Type: Flexible impeller pump (electric impeller pump)
- Construction: Bronze pump head/body
- Impeller Material: Nitrile (oil-resistant)
- Shaft: Stainless steel
- Shaft Seal: Lip type seal
- Motor Coupling: Close coupled to a 12V DC motor
- Standards Listed: ISO 8846 Marine; ISO 8849 Marine
- Product Portfolio: General Purpose Pumps; Electric impeller pumps
Connections
- Designed for 12.5 mm (1/2 in) bore hose
- Two 12.5 mm hose fittings (listed)
- 25 mm (1 in) internal diameter hose ports (listed)
- 9.5 mm (3/8 in) BSP male threaded fitting option (not included)
- Connection listing includes: 1/2 in BSP, 3/8 in BSP, and 1 in hose connection
Features
- Continuously rated commercial-duty operation for bilge transfer and washdown tasks
- Self-priming design for easier installation above the fluid source (self-priming values listed up to 2 m and 1.5 m)
- Simple, fully serviceable layout with minimal wearing parts
- Compact form factor for tight installations
Spare Parts
- Impeller available: Catalog # 1414-0003B
-
