The Jabsco 23610-3003 Maxi Puppy flexible impeller pump and motor unit delivers self-priming bilge and deck wash performance on 12V DC power, using a bronze pump body with a stainless steel shaft and an oil-resistant nitrile impeller. It provides up to 45 L/min flow and supports both 25 mm (1 in) hose connections and 1/2 in BSP threaded ports, while meeting ISO 8846 ignition protection and ISO 8849 bilge pump standards for marine use.
- Description
- Ask a Question
-

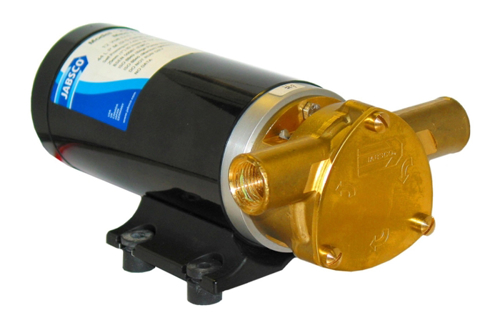

Jabsco 23610-3003 Maxi Puppy 12V Flexible Impeller Pump Unit
The Jabsco 23610-3003 Maxi Puppy 3000 is a self-priming electric flexible impeller pump designed for dependable bilge transfer and deck wash service. Built with marine-ready materials and a close-coupled 12V DC motor, it supports general-purpose onboard or dockside pumping where reliable suction lift and durable construction matter.
Application
- Bilge pumping and bilge transfer
- Deck wash and washdown duties
- Circulation and general-purpose marine or industrial use
Compatibility
- 12V DC electrical systems
- Hose connections for 25 mm (1 in) inside-diameter hose
- 1/2 in BSP female threaded connection option
Technical Specifications
Model / Supplier Code 23610-3003 Order Number 00320132 Barcode 671880551274 Voltage 12V DC Maximum Flow Rate 45 L/min (10 GPM) Additional Output Figures (As Listed) 44 L/min; 47 L/min maximum; 44 L/min at 3 m head; 11 GPM at 10 ft total head; nominal 720 GPH (2725 LPH) / 11 GPM (44 LPM) Flow at Head (As Listed) 2700 LPH (713 US GPH) at 2 m head; 2280 LPH (602 US GPH) at 6 m head; 1800 LPH (475 US GPH) at 10 m head Self-Priming Height Up to 2.4 m (7.9 ft / 8 ft) Lift When Primed (As Listed) Up to 6 m (20 ft) Amperage 21A Fuse Rating 25A Dimensions (H x L x W) 90 mm x 220 mm x 120 mm (9 cm x 22 cm x 12 cm) Connections Ports for 25 mm (1 in) ID hose; 1/2 in BSP female thread; connection option via 1/2 in BSP male threaded fitting (not included) Pump Body / Head Material Bronze Shaft Material Stainless steel Impeller Material Nitrile (oil-resistant) Compliance ISO 8846 marine ignition protection; ISO 8849 marine bilge pump standards Shipping Weight (As Listed) 4.30 kg Replacement Impeller JAB-7273-0003
Product Details
- Design: Self-priming flexible impeller pump, close-coupled to a 12V DC motor
- Duty: Continuously rated commercial-duty pump for bilge transfer and general-purpose use
- Temperature Limits (Nitrile Impeller): 7°C to 82°C (45°F to 180°F)
- Service Note: Unit depends on pumped liquid for lubrication; do not run dry for more than 30 seconds
- Installation Note: Suction lines must be airtight or the pump will not self-prime
- Use Restriction: Do not use for petrol, petroleum products, or liquids with a flash point below 37°C
- Spare Part Note (As Listed): Shaft seal catalog number SP2701-52
Features
- Self-priming capability for dependable suction performance
- Bronze construction with stainless steel shaft for marine durability
- Oil-resistant nitrile impeller suited to demanding bilge and washdown service
- Meets ISO 8846 and ISO 8849 marine standards for ignition protection and bilge pump operation
-
