ID
1331290
$ 520.97
1-2 weeks delivery time
-
+
The Jabsco 23620-4103 Mini Puppy impeller pump and motor unit delivers 24V DC self-priming performance for bilge transfer, deck wash, and general-purpose marine use. It is described as continuous commercial duty and also suited to light-duty applications, using a bronze pump head/body with an oil-resistant nitrile impeller and a stainless steel shaft for durable operation. Free-flow output is stated up to 7.4 L/min (about 6 L/min at 2 m head), with self-priming figures listed up to 2 m and up to 1.5 m vertical lift, and electrical requirements of 2.5 A with a 5 A fuse.
- Description
- Ask a Question
-

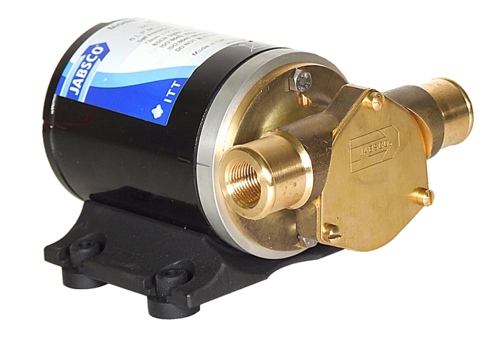

Jabsco 23620-4103 Mini Puppy 24V Self-Priming Impeller Pump Unit
The Jabsco Mini Puppy is a compact flexible impeller pump and motor unit built for marine bilge and deck wash duties, as well as general-purpose transfer. With bronze construction and a nitrile impeller, it is designed to provide dependable flow, self-priming capability, and serviceable simplicity in a small footprint.
Application
- Bilge and deck wash use
- Bilge transfer
- General-purpose pumping
- Commercial duty operation (as stated) and light-duty bilge/deck wash use (as stated)
Technical Specifications
Supplier Code 23620-4103 Order Number 00320135 Barcode 671880551335 Voltage 24V DC Current Draw 2.5 A Recommended Fuse 5 A Flow Rate Up to 7.4 L/min (free flow); approximately 6 L/min at 2 m head Output (Listed) 6 L/min Self-Priming Up to 2 m (also listed: self-priming up to 1.5 m vertical lift) Suction Height (Listed) 1.5 m Maximum Pressure (Listed) Up to 2 bar (30 psi) Pump Head / Body Material Bronze Impeller Material Nitrile (oil-resistant stated) Shaft Material Stainless steel Shaft Seal Lip type Standards (Listed) ISO 8846 Marine; ISO 8849 Marine Connections (Listed) Designed for 12.5 mm (1/2 in) bore hose; two 12.5 mm hose fittings; 25 mm (1 in) ID hose ports; 9.5 mm (3/8 in) BSP male threaded fitting (not included); also listed: 1/2 in BSP, 3/8 in BSP, 1 in hose connection Dimensions (Listed) Height 80 mm, width 120 mm, length 150 mm; also listed: 165 mm (L) x 84 mm (W) x 83 mm (H) Packaged Dimensions (Listed) 24.00 cm (L) x 11.00 cm (H) x 13.00 cm (W) Weight (Listed) Approximately 2.46 kg (pump); approximately 2.96 kg (packed) Shipping Weight (Listed) 3.20 kg Product Portfolio (Listed) General Purpose Pumps; Electric impeller pumps
Product Details
- Pump type: Flexible impeller pump, close-coupled to a 24V DC motor
- Serviceability: Fully serviceable design with minimal wearing parts (as stated)
- Duty description (as stated): Continuously rated commercial duty; also described for light-duty bilge and deck wash applications
Features
- Self-priming operation (figures listed up to 2 m and up to 1.5 m vertical lift)
- Up to 7.4 L/min free-flow output, with approximately 6 L/min at 2 m head
- Bronze construction with oil-resistant nitrile impeller
- Stainless steel shaft and lip-type seal
- Designed for common marine hose and BSP connection options (as listed)
Spare Parts
- Impeller: Catalog 1414-0003B
-
