The Jabsco 23670-4003 Junior Puppy flexible impeller pump delivers compact, self-priming 12V DC performance for bilge transfer and deck wash duties. It provides up to 15 liters per minute at zero head (also listed as 15.5 L/min in general specifications), uses 3/8" BSP female ports with 19 mm (3/4") hose compatibility, and features a durable bronze pump body with a nitrile impeller for marine service. With a 13A current draw and 15A fuse rating, ISO8846 and ISO8849 approvals, and self-priming up to 2.5 m, it is built for dependable onboard pumping where space and reliability matter.
- Description
- Ask a Question
-

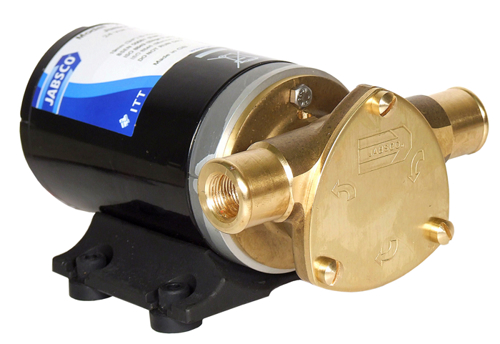

Jabsco 23670-4003 Junior Puppy Self-Priming Impeller Pump
The Jabsco 23670-4003 Junior Puppy is a compact, self-priming flexible impeller pump and motor unit for bilge transfer, deck wash, and general-purpose water movement. Its bronze construction and nitrile impeller support reliable operation in demanding marine environments while maintaining practical installation and service access.
Application
- Bilge transfer
- Deck wash
- General-purpose pumping in marine and recreational settings
Technical Specifications
Series Junior Puppy Model / Supplier Code 23670-4003 Voltage 12V DC Current Draw 13A Fuse Rating 15A Maximum Flow Rate 15 liters per minute at zero head Output (Listed) 15.5 l/min Flow at Head (Listed) 930 LPH (245 US GPH) at 5 m; 810 LPH (213 US GPH) at 10 m; 690 LPH (182 US GPH) at 15 m Self-Priming Capability Up to 2.5 m (also listed as 2.4 m) Suction Height (Listed) 1.5 m Port Thread 3/8" BSP female Port Outer Diameter (Listed) 3/4" outer diameter Hose Compatibility 19 mm (3/4") ID hose Dimensions Height 90 mm (3.54"), Length 180 mm (7.1"), Width 110 mm (4.3") Shipping Weight 3.80 kg Approvals ISO8846 marine ignition; ISO8849 marine bilge pump Order Number 00320136 Barcode 671880551342
Product Details
- Pump Type: Flexible impeller pump (close-coupled to a 12V DC motor)
- Pump Body Material: Bronze
- Impeller Material: Nitrile
- Connections: Inlet and outlet designed for 19 mm (3/4") ID hose and 3/8" BSP female thread
- Mounting Note: Not suitable for vertical mounting where the impeller housing is above the motor
- Replacement Impeller Part Number (Listed): JAB-9200-0023B
- Spare Parts (Listed): Impeller catalog # 9200-0023; Shaft seal catalog # SP2701-52; Body
Features
- Self-priming design supports easier installation and consistent pickup
- Bronze pump head enhances durability for bilge and washdown use
- 3/8" BSP ports with 19 mm (3/4") hose compatibility for common marine plumbing
- Continuous rated commercial duty pump for bilge transfer and general-purpose use
Operating Notes
- Do not run flexible impeller pumps dry, as this can damage the impeller.
- Do not use any Jabsco pump for petrol, petroleum products, or any products with a flash point below 37°C.
-
