The Jabsco 23610-3103 Maxi Puppy electric flexible impeller pump delivers self-priming, heavy-duty water transfer for bilge and deck wash duties on 24V DC systems. A bronze pump body with a stainless steel shaft and nitrile impeller supports durable marine service, while up to 45 L/min maximum flow and ISO 8846 and ISO 8849 approvals help make it a dependable choice for commercial-duty onboard pumping where reliable suction lift and robust construction matter.
- Description
- Ask a Question
-

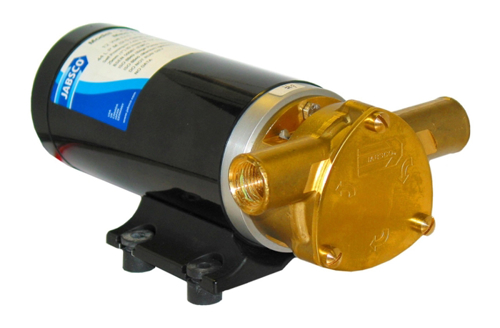

Jabsco 23610-3103 Maxi Puppy 3000 Flexible Impeller Pump Unit
The Jabsco 23610-3103 “Maxi Puppy” is a self-priming electric impeller pump and motor unit built for demanding water pumping tasks. It is commonly used for bilge transfer and deck wash, and is also described for general-purpose onboard or dockside applications where steady flow, reliable priming, and durable construction are required.
Application
- Bilge transfer
- Bilge pumping (not an automatic bilge pump)
- Deck wash
- Washdown
- Circulation
- General-purpose onboard use
- Dockside applications
- Marine use
- Recreational vehicle use
- Frequently used as a foam concentrate pump on fire engines
Compatibility
- 24V DC power systems
Technical Specifications
Model Number 23610-3103 Voltage 24V DC Current Draw 11 A Recommended Fuse 15 A Maximum Flow Rate Up to 45 L/min (10 gallons per minute) max Additional Output Figures (As Listed) 47 L/min max; 44 L/min; 44 L/min at 3 m head Flow at 10 m Head 1800 LPH (475 US GPH) Flow at 2 m Head 2700 LPH (713 US GPH) Flow at 6 m Head 2280 LPH (602 US GPH) Nominal Flow Rate (As Listed) 720 GPH (2725 LPH) / 11 GPM (44 LPM) Self-Priming (Dry) Up to 2.4 m (7.9 ft / 8 ft) Lift When Primed (As Listed) Up to 6 m (20 ft) Dimensions Height 90 mm (3.54 in), Length 220 mm (8.5 in), Width 120 mm (4.75 in) Dimensions (Alternate Listing) Height 9 cm, Width 12 cm, Length 22 cm Connections For 25 mm (1 in) ID hose with 1/2 in BSP female thread Port Size (As Listed) Ports are 1/2 in BSP thread and 1 in ID hose Threaded Fitting Option (Not Included) Via 13 mm (1/2 in) BSP male threaded fitting Construction Bronze pump body (bronze pump head) with stainless steel shaft Impeller Material Nitrile (oil resistant) Approvals ISO 8846 marine ignition protection; ISO 8849 marine bilge pump standard Shipping Weight 4.30 kg Replacement Impeller JAB-7273-0003 Order Number 00320133 Supplier Code 23610-3103 Barcode 671880548632 Automatic Bilge Pump No
Product Details
- Duty: Continuously rated commercial duty pump for bilge transfer and general-purpose use
- Design: Flexible impeller, close-coupled to a 24V DC motor
- Debris Handling (As Listed): Bilge debris presents no problem to the bronze-bodied, flexible impeller design
- Installation Notes: Can be mounted on any flat surface in a dry, well-ventilated position with access for service
- Mounting Restriction: Should not be mounted vertically with the impeller housing above the motor; if installed vertically, the motor must be above the pump head
- Priming Note: Suction lines must be airtight or the pump will not self-prime
- Lubrication Requirement: Unit depends on the liquid pumped for lubrication
- Run-Dry Limitation: Do not run dry for more than 30 seconds; lack of liquid will damage the impeller and pump components
- Temperature Limits for the Nitrile Impeller (As Listed): 7 C to 82 C (45 F to 180 F)
- Fluid Restriction (As Listed): Do not use for petrol, petroleum products, or any products with a flash point below 37 C
Features
- Self-priming electric impeller pump design
- Bronze body and stainless steel shaft for marine durability
- Oil-resistant nitrile impeller
- High-flow capability for bilge transfer and deck wash use
-
