The FP-3B 16x10 LH bladeset is a 16-inch (406 mm) diameter propeller with 3 blades, 12-inch pitch, and a 0.83% developed area ratio, made from Nickel Aluminum Bronze with keyway specifications for precise installation, compatible with product 735007.
- Description
- Ask a Question
-

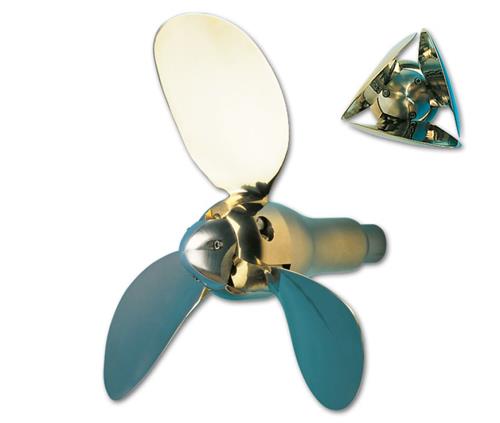

Flexofold Bladeset FP-3B 16x10 LH
This 16x10 LH FP-3B bladeset by Flexofold is a 16-inch (406 mm) diameter propeller made from nickel aluminum bronze. It features a 0.83% developed area ratio and includes keyway specifications for precise installation.
Key Features
- Material: Nickel Aluminum Bronze (Ni.Al.Br.)
- Number of Blades: 3
- Shaft Diameter: 35 mm
- Taper: 1 : 10
- Rotation Direction: Turning Left
- Pitch: 12 inches
- Developed Area Ratio (DAR): 0.83%
- Maximum Shaft Hole Diameter: 40 mm
- Keyway Width: 4 mm
- Keyway Length: 10 mm
Product Diameter (inch) 16" Product Diameter (mm) 406 Suitable For 735007 Article Code SP7871610 EAN Code 8720193083483
Brand: Flexofold
-
