ID
1345644
$ 2,202.66
1-2 weeks delivery time
-
+
The FP-3B 15x13 LH bladeset has a 15-inch (381 mm) diameter, 17-inch pitch, 3 blades, and a developed area ratio of 0.68%, made from Nickel Aluminum Bronze with detailed keyway dimensions, suitable for Flexofold system 735007.
- Description
- Ask a Question
-

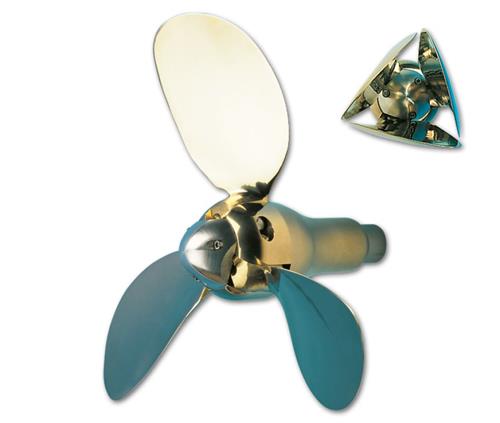

Flexofold Bladeset FP-3B 15x13 LH
The FP-3B 15x13 LH bladeset offers a 15-inch (381 mm) diameter and 0.68% developed area ratio. It is constructed from nickel aluminum bronze and includes detailed keyway dimensions for compatibility.
Key Features
- Material: Nickel Aluminum Bronze (Ni.Al.Br.)
- Number of Blades: 3
- Shaft Diameter: 30 mm
- Taper: 1 : 10
- Rotation Direction: Turning Left
- Pitch: 17 inches
- Developed Area Ratio (DAR): 0.68%
- Maximum Shaft Hole Diameter: 40 mm
- Keyway Width: 4 mm
- Keyway Length: 8 mm
Product Diameter (inch) 15" Product Diameter (mm) 381 Suitable For 735007 Article Code SP7871513 EAN Code 8720193083476
Brand: Flexofold
-
