The FP-3B 16x12 LH bladeset has a 16-inch (406 mm) diameter, 14-inch pitch, 3 blades, and a 0.83% developed area ratio, made from Nickel Aluminum Bronze with specific keyway dimensions, compatible with product 735007.
- Description
- Ask a Question
-

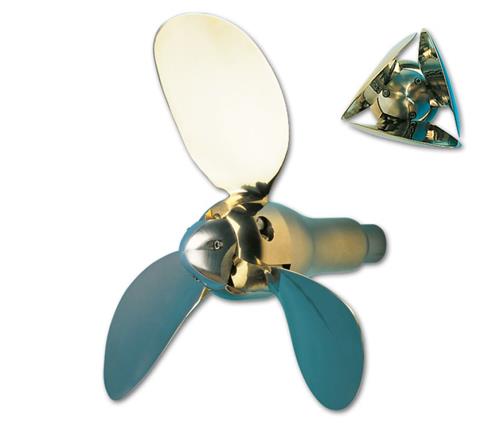

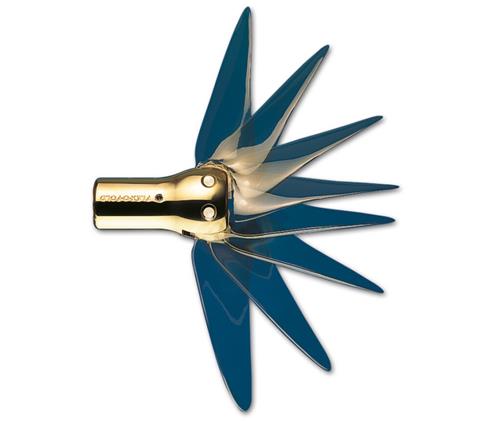

Flexofold Bladeset FP-3B 16x12 LH
This FP-3B 16x12 LH bladeset by Flexofold has a 16-inch (406 mm) diameter and 0.83% developed area ratio. Crafted from nickel aluminum bronze, it features specific keyway dimensions for secure mounting.
Key Features
- Material: Nickel Aluminum Bronze (Ni.Al.Br.)
- Number of Blades: 3
- Shaft Diameter: 35 mm
- Taper: 1 : 10
- Rotation Direction: Turning Left
- Pitch: 14 inches
- Developed Area Ratio (DAR): 0.83%
- Maximum Shaft Hole Diameter: 40 mm
- Keyway Width: 4 mm
- Keyway Length: 10 mm
Product Diameter (inch) 16" Product Diameter (mm) 406 Suitable For 735007 Article Code SP7871612 EAN Code 8720193083506
Brand: Flexofold
-
