ID
1345651
$ 2,897.64
1-2 weeks delivery time
-
+
The FP-3B 17x12 LH bladeset has a 17-inch diameter, 12-inch pitch, 3 blades, left-hand rotation, and a 0.68% developed area ratio, made from Nickel Aluminum Bronze, suitable for product 735007.
- Description
- Ask a Question
-

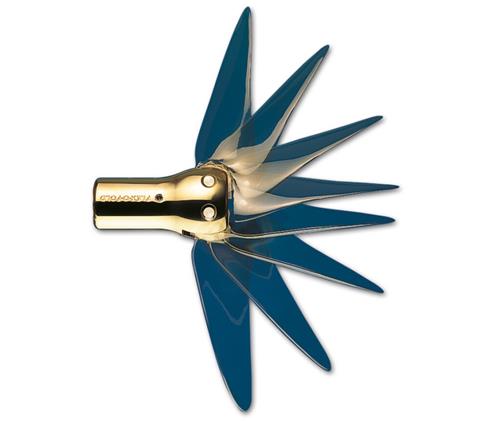

Flexofold Bladeset FP-3B 17x12 LH
This 17-inch diameter bladeset with a 12-inch pitch is designed for left-hand turning, suitable for 35 mm shafts. Constructed from Nickel Aluminum Bronze, it features a Developed Area Ratio (DAR) of 0.68 and 3 blades, compatible with product 735007.
Highlights
- Rotation Direction: Left
- Material: Nickel Aluminum Bronze (Ni.Al.Br.)
- Number of Blades: 3
- Taper: 1 : 10
- Max Shaft Hole Diameter: 40 mm
Technical Information
Article Code: SP7871712 Sales Unit: 1 piece Developed Area Ratio (DAR) %: 0.68 Shaft Diameter (mm): 35 Product Diameter (inch): 17" Product Diameter (mm): 432 Pitch (inch): 16" Keyway Width (mm): 4 Keyway Length (mm): 10
Brand: Flexofold (Article code: SP7871712)
-
