The FP-3B 17x11 LH bladeset is a 17-inch diameter propeller with 3 blades, 11-inch pitch, left-hand rotation, and a 0.68% developed area ratio, crafted from Nickel Aluminum Bronze for Flexofold system 735007.
- Description
- Ask a Question
-

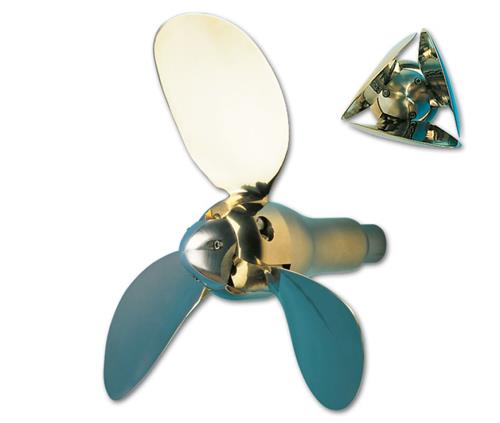

Flexofold Bladeset FP-3B 17x11 LH
This bladeset offers a 17-inch diameter with an 11-inch pitch, suitable for left-hand rotation and 35 mm shaft diameters. Made from high-quality Nickel Aluminum Bronze, it has a Developed Area Ratio (DAR) of 0.68 and includes 3 blades. Compatible with product 735007.
Key Features
- Rotation Direction: Left
- Material: Nickel Aluminum Bronze (Ni.Al.Br.)
- Number of Blades: 3
- Taper: 1 : 10
- Max Shaft Hole Diameter: 40 mm
Specifications
Article Code: SP7871711 Sales Unit: 1 piece Developed Area Ratio (DAR) %: 0.68 Shaft Diameter (mm): 35 Product Diameter (inch): 17" Product Diameter (mm): 432 Pitch (inch): 15" Keyway Width (mm): 4 Keyway Length (mm): 10
Brand: Flexofold (Article code: SP7871711)
-
