ID
1377027
$ 385.14
1-2 weeks delivery time
Type:
- 25 mm²
- 35 mm²
- 50 mm²
Color:
- Red
- Black
The Osculati Tinned Copper Marine Battery Cable is manufactured from tinned copper conductors with a synthetic resin insulating sheath for enhanced corrosion resistance in marine environments. Available in black or red insulation, with conductor sizes from 25 mm² to 50 mm², continuous current ratings up to 160 A, and supplied in 24 m rolls.
- Description
- Ask a Question
-

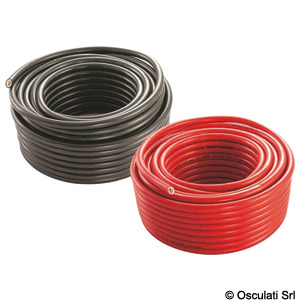

Osculati Tinned Copper Marine Battery Cable – Black or Red, 25–50 mm², 24 m Roll
The Osculati Tinned Copper Marine Battery Cable is designed for demanding marine electrical installations where corrosion resistance and long service life are essential. Manufactured from tinned copper conductors and protected by a synthetic resin insulating sheath, these cables comply with EC standards for use in bilges and onboard electrical systems.
The tinned copper construction provides improved resistance to oxidation and corrosion compared to standard copper conductors, making these cables ideal for battery banks, charging systems, power distribution panels, inverters, and high-current DC circuits.
Key Features
- Tinned copper conductor
- Synthetic resin insulation
- Suitable for marine and bilge installations
- Enhanced corrosion resistance
- Available in black and red insulation
- Continuous current rating up to 160 A
- Supplied in 24 m rolls
- Manufactured according to EC standards
Available Variations
Section Color Osculati Code Max Current External Ø Sheath Thickness Roll Length 25 mm² Black 14.388.25 100 A 10.3 mm 1.8 mm 24 m 25 mm² Red 14.389.25 100 A 10.3 mm 1.8 mm 24 m 35 mm² Black 14.388.35 125 A 12 mm 1.8 mm 24 m 35 mm² Red 14.389.35 125 A 12 mm 1.8 mm 24 m 50 mm² Black 14.388.50 160 A 14 mm 2 mm 24 m 50 mm² Red 14.389.50 160 A 14 mm 2 mm 24 m
Technical Specifications
Brand Osculati Conductor Material Tinned Copper Insulation Material Synthetic Resin Application Marine Battery and Power Systems Compliance EC Standards for Bilge Use Roll Length 24 m
Sold individually in the selected cable section and insulation color.
-
