ID
1377014
$ 239.81
1-2 weeks delivery time
Type:
- 16 mm²
- 25 mm²
- 35 mm²
- 50 mm²
- 70 mm²
- 95 mm²
Color:
- Red
- Black
The Osculati Marine Battery Cable is manufactured from copper conductors with a synthetic resin insulating sheath, designed for marine electrical systems and bilge installations. Available in black or red versions with conductor cross-sections from 16 mm² to 95 mm², continuous current ratings up to 300 A, and supplied in 24 m rolls.
- Description
- Ask a Question
-

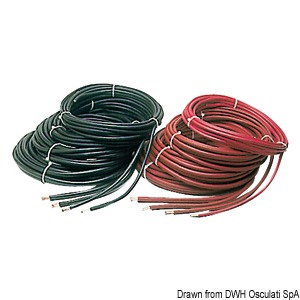

Osculati Marine Battery Cable – Tinned Copper, Black or Red, 16–95 mm², 24 m Roll
The Osculati Marine Battery Cable is designed for high-current marine electrical installations. Manufactured from copper conductors and protected by a synthetic resin insulating sheath, the cable complies with EC standards for use in bilges and demanding onboard environments.
Available in black and red versions, these battery cables are suitable for battery banks, starter circuits, power distribution systems, inverters, chargers, and other high-current DC applications.
Key Features
- Copper conductor construction
- Synthetic resin insulating sheath
- Suitable for marine and bilge installations
- Available in black or red insulation
- Cross-sections from 16 mm² to 95 mm²
- Continuous current rating up to 300 A
- Supplied in 24 m rolls
- Manufactured according to EC standards
Available Variations
Section Color Osculati Code Max Current External Ø Sheath Thickness Roll Length 16 mm² Black 14.381.16 75 A 8.7 mm 1.7 mm 24 m 16 mm² Red 14.382.16 75 A 8.7 mm 1.7 mm 24 m 25 mm² Black 14.381.25 100 A 10.3 mm 1.8 mm 24 m 25 mm² Red 14.382.25 100 A 10.3 mm 1.8 mm 24 m 35 mm² Black 14.381.35 125 A 12 mm 1.8 mm 24 m 35 mm² Red 14.382.35 125 A 12 mm 1.8 mm 24 m 50 mm² Black 14.381.50 160 A 14 mm 2.0 mm 24 m 50 mm² Red 14.382.50 160 A 14 mm 2.0 mm 24 m 70 mm² Black 14.381.70 250 A 16 mm 2.0 mm 24 m 70 mm² Red 14.382.70 250 A 16 mm 2.0 mm 24 m 95 mm² Black 14.381.90 300 A 21 mm 2.4 mm 24 m 95 mm² Red 14.382.90 300 A 21 mm 2.4 mm 24 m
Technical Specifications
Brand Osculati Conductor Material Copper Insulation Material Synthetic Resin Application Marine Battery and Power Cables Compliance EC Standards for Bilge Use Roll Length 24 m
Sold individually in the selected section and color.
-
